The Steelbro side lifter trailer is a high-end heavy-duty logistics equipment that integrates self-loading and unloading, double-layer stacking, and vehicle-to-vehicle transfer. With its signature low center of gravity boom design and high-precision hydraulic control, the Steelbro side lifter trailer achieves excellent safety and efficient single-person independent operation.
The Steelbro side lifter trailer allows a single truck driver to independently load and unload 20-foot, 40-foot, or two 20-foot containers on the ground within minutes. No additional manpower or large auxiliary equipment is required, significantly reducing labor and waiting costs.
The Steelbro side lifter trailer can unload containers directly onto the customer's ground. After unloading, the truck doesn't need to leave an expensive chassis on site; it can immediately move to the next location.
Steelbro Sidelifter Trailer for Sale In Guyana
Steelbro Sidelifter Trailer for Sale In Guyana
Steelbro Sidelifter Trailer for Sale In Guyana
Steelbro Sidelifter Trailer for Sale In Guyana
Steelbro Sidelifter Trailer for Sale In Guyana
Steelbro Sidelifter Trailer for Sale In Guyana
Crane: CN Hammar Brand
Loading capacity: 45 Ton
Load: 20 ft and 40 ft container
Power source: Diesel engine
Remote control: 1 unit
Chains: 2 chains+4 hooks

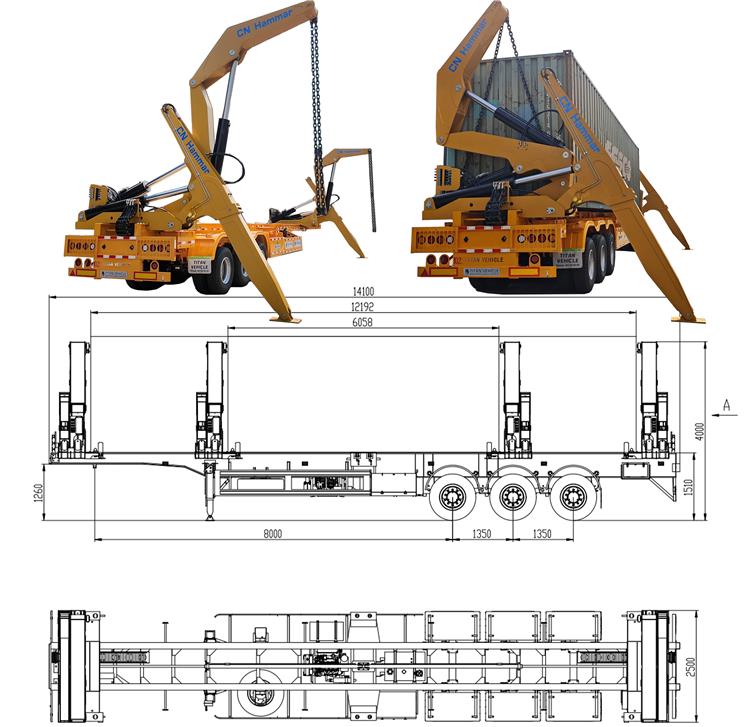

Dimension: 14100*2500*4200mm
Axles: 3 axle*13 ton;16 tons brake lining
Tires: 12 pcs,12R22.5

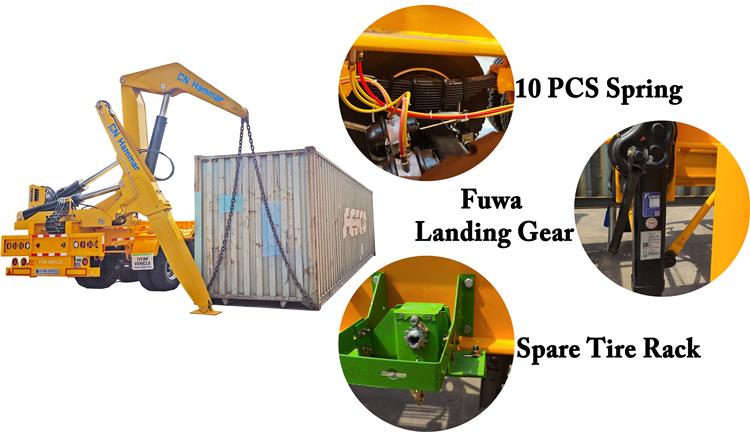

Landing gear: FUWA
Braking system: WABCO Emergency valve

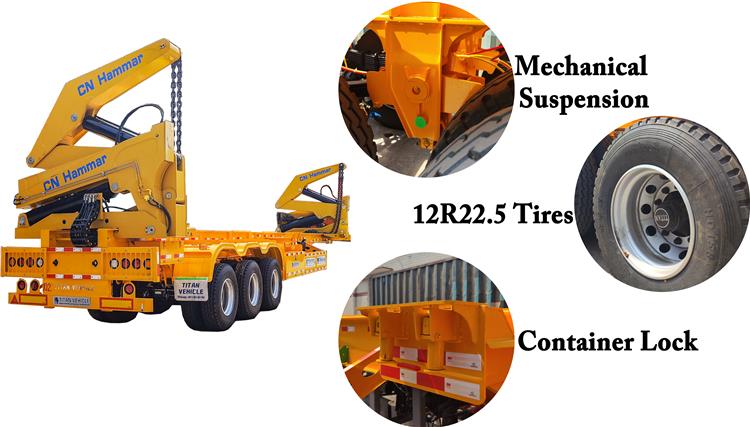

Suspension: Mechanical Suspension
Kingpin: 2 inch and 3.5 inch
The Steelbro side lifter trailer features a unique low-profile boom design. When the boom is folded back, the overall height is extremely low.
The Steelbro side lifter trailer is equipped with imported Danfoss proportional valves, supporting dual-speed control (high-speed deployment and low-speed safety fine-tuning). The operator can lift containers extremely smoothly and gently using a remote control (wired or wireless), avoiding violent swaying due to inertia, which is crucial for transporting dangerous or fragile goods.
The Steelbro side lifter trailer supports up to four hydraulic actions simultaneously, significantly reducing the cycle time for outrigger extension and boom raising/lowering.
Steelbro side lifter trailers typically feature an independent Kubota diesel engine (APU) as their hydraulic power source. These engines are renowned for their quiet operation, high efficiency, and low failure rate, operating independently of the tractor unit's power output (PTO), allowing for seamless operation even with different tractor units.
The Steelbro side lifter trailer's body and boom are constructed from imported high-strength, high-toughness steel. While ensuring a rated lifting capacity (SWL) of 36 tons (SB362/363) and even 45 tons (SB450), the Steelbro side lifter trailer maintains an extremely low curb weight, providing customers with greater legal and compliant load capacity.
In the international market, the Steelbro side lifter trailer represents high safety, exceptionally high resale value (extremely high residual value), and a smooth operating experience. It is heavy-duty equipment specifically designed for high-intensity, high-frequency logistics transportation with stringent safety standards.
