The weight capacity of container side loader trailers may vary by model and manufacturer. However, most container side loader trailers have a lifting capacity of 30 to 45 tons.
It’s worth noting that weight capacity may also depend on other factors, such as the length of the container, the location of the load within the container, and the specific configuration and capabilities of the side loader itself. Additionally, local regulations and road restrictions may impose limits on the maximum weight a side loader can lift.
When it comes to the weight carrying capacity of container side loader trailers, here is some more information:
Load capacity: The load capacity of most container side loader trailers is usually between 30 and 40 tons. This means they can carry a weight of 30 to 40 tons, including the total weight of containers and other cargo.
Differences between models: Different container side loader trailer models and manufacturers may have different load capacities. Some smaller container side loader trailers may only be able to carry lighter loads, while larger side loader trailers can handle heavier loads. Therefore, specific load capacity should be confirmed based on the specific side loader model.
Load distribution: The load capacity of a container side loader trailer is usually for standard 20-foot and 40-foot containers, and the weight of these containers is usually evenly distributed. Different side loaders may have different requirements for center of gravity location and load distribution to ensure safe and stable transportation.
Configuration options: Some container side loader trailers have adjustable load arms to accommodate different sizes and types of containers. This flexibility allows them to adapt to a variety of cargo loading and unloading needs.
Local regulations and restrictions: The load capacity of a container side loader trailer may also be limited by local regulations and road restrictions. Certain regions may impose maximum load limits on transport vehicles to ensure highway safety and protect road infrastructure. Therefore, applicable regulations and restrictions need to be followed when using container side loader trailers.
Container side loader trailers usually have reliable load capacity and can handle most container and cargo transportation needs. However, specific load capacity should be confirmed based on the side loader model, configuration and local regulations to ensure safety and compliance.
How Much Weight Can a Container Side Loader Lift?
The structure of the container side load trailer for sale perfectly blends engineering innovation, mechanical strength, and operational safety. Each component is meticulously designed and manufactured to ensure durability, precision, and stability even under heavy loads.
1. High-Strength Main Chassis
At the heart of every TITAN container side load trailer for sale is a high-strength steel chassis designed to withstand the dynamic stresses of lifting and transporting 20-foot and 40-foot containers. The TITAN container side load trailer for sale utilizes Q460 or T700 structural steel, which offers superior yield strength, fatigue resistance, and impact resistance compared to standard mild steel.
The TITAN container side load trailer for sale's main frame features a box beam design with double-layer reinforcement ribs to evenly distribute stress during lifting.
The TITAN container side load trailer for sale utilizes robotic MIG welding technology, ensuring each weld is uniform, strong, and free of hidden cracks. This process minimizes human error and ensures consistent quality. After manufacturing, the entire frame is shot blasted to remove oxides and impurities. It is then coated with an anti-rust primer and polyurethane paint, providing excellent resistance to corrosion, moisture, and salt spray.
The frame geometry of the TITAN container side load trailer for sale is optimized through 3D CAD analysis to maintain a low center of gravity, enhancing balance when lifting containers from the ground.
The Titan's chassis design ensures a long service life (over 10 years), even on rough roads or under heavy loads at ports, mining sites, and inland logistics facilities.
2. Hydraulic Lifting System
The hydraulic system of the TITAN container side load trailer for sale is the heart and soul of the side load trailer, enabling it to lift containers smoothly and precisely. The TITAN container side load trailer for sale utilizes internationally renowned hydraulic brands, including HYVA, Parker, and WABCO, ensuring stable operation and minimal maintenance.
The TITAN container side load trailer for sale's heavy-duty double-acting hydraulic cylinders provide powerful lifting force while minimizing leakage. The hydraulic cylinders are chrome-plated for smooth movement and corrosion resistance.
All hoses are braided steel and certified for high-pressure applications. Fittings use Parker standard connectors, ensuring leak-free operation and easy replacement.
The hydraulic pump can be driven by a standalone diesel engine or the truck's PTO system. A multi-way valve block precisely regulates oil flow, giving the operator complete control during container loading and unloading.
The TITAN container side load trailer for sale is equipped with a large-capacity hydraulic oil tank and a multi-stage filtration system to effectively remove impurities and extend system life.
It offers smooth and balanced lifting, even on uneven surfaces. High-precision hydraulic control ensures low noise and vibration. Long maintenance intervals ensure easy maintenance. It also offers energy-efficient operation, saving up to 20% fuel compared to conventional designs.
3. Lifting Crane and Boom
The TITAN container side load trailer for sale is equipped with two hydraulic cranes, one mounted on each side of the trailer. These cranes are responsible for safely picking up, loading, or unloading containers from the ground or other trucks. The TITAN container side load trailer for sale's boom is constructed of high-strength alloy steel and features a telescopic design. It offers flexible lifting angles and adjustable reach, suitable for single- or double-stack operations.
The TITAN container side load trailer for sale utilizes forged steel pins and bronze bushings at all pivot points to ensure smooth movement and wear resistance.
The TITAN container side load trailer for sale's boom cylinder is equipped with a load-holding valve to prevent accidental drops, ensuring the highest safety standards during operation.
The TITAN container side load trailer for sale's boom can lift up to 45 tons, easily handling both empty and fully loaded containers.
With a lifting range of up to 4 meters, the TITAN container side load trailer for sale can operate in confined spaces where conventional cranes are unable to operate.
Load sensors prevent overloading. A safety valve automatically locks the cylinder in the event of a hose rupture. An emergency stop button immediately halts operation.
4. Hydraulically stabilized outriggers
The TITAN container side load trailer for sale's stability is crucial during lifting operations. Each Titan side-lift crane is equipped with four hydraulically stabilized outriggers (outriggers) that extend horizontally and vertically to create a stable base.
Each outrigger is controlled by a hydraulic cylinder and automatically adjusts to ground height, keeping the trailer stable even on uneven terrain.
The outrigger pads are large and reinforced to prevent sinking into soft ground, thereby improving overall lifting stability.
Each stabilizer can be operated independently, providing flexibility in narrow or sloping environments.
The robust stabilizer system ensures zero tilt, zero swing, and 100% operational safety during container handling.
5. Container Locking System (Twist Lock)
The container locking system securely connects the container to the trailer frame. Titan uses ISO-standard twist locks that meet international shipping and safety standards.
Manual locks are simple and reliable; automatic locks can be integrated with the lifting system for faster container positioning.
Made of alloy steel for high tensile strength, wear resistance, and corrosion resistance. Designed for 20-foot and 40-foot ISO containers and adjustable to accommodate double 20-foot configurations.
This system ensures safe transport and prevents container shifting during travel or lifting.
6. Control System and Remote Operation
To enhance efficiency and safety, the TITAN container side load trailer for sale is equipped with a dual control system—manual control levers and a wireless remote control.
The remote control allows the operator to control all lifting, lowering, and stabilization movements from a distance of up to 30 meters, providing clear visibility and enhanced safety.
The panel, located on the side of the trailer, contains precision control levers and indicators, providing real-time hydraulic feedback.
Integrated overload protection, automatic leveling, and emergency stop functions are standard. Even a single operator can safely and efficiently complete container loading and unloading in under 5 minutes.
7. Axles, Suspension, and Tires
While the crane system performs lifting operations, the axles and suspension system bear the weight of the container during transport. Heavy-duty axle components from globally renowned brands such as BPW, FUWA, or TITAN ensure road stability and durability.
Two- or three-axle configurations are available, with rated load capacities ranging from 13 to 16 tons per axle. Optional mechanical leaf springs or air suspension systems provide smoother vehicle operation. The TITAN container side load trailer for sale is equipped with a WABCO brake valve and ABS system, enhancing safety on long downhill slopes.
Standard 12R22.5 tubeless tires ensure high load capacity, lower rolling resistance, and a longer service life.
These components ensure excellent driving performance even in adverse conditions, providing excellent stability, minimal vibration, and reduced tire wear.
8. Power Options
The container side load trailer for sale offers two independent power options. One uses the truck engine to drive the hydraulic pump—a cost-effective and maintenance-free option ideal for short-distance operations.
An independent diesel engine unit powers the hydraulic system. This setup is ideal for fleets requiring mobility and multi-truck compatibility. Both systems are designed with energy efficiency, ease of operation, and low maintenance in mind.
9. Electrical and Lighting Systems
The Titan's LED lighting system meets international transport standards, enhancing road safety.
LED taillights and reflectors provide high visibility during nighttime operations. Waterproof and dustproof connectors ensure long-term reliability. Additional working lights, warning lights, and safety indicators can be installed for nighttime loading operations.
A container side load trailer for sale is more than just a transport tool; it's a meticulously designed system designed to deliver powerful power, precise handling, and safety. From the rugged chassis to the intelligent hydraulic crane, every structural component works together to provide superior lifting performance and long-term reliability.
Whether operating in ports, warehouses, or remote project sites, the container side load trailer for sale structure ensures maximum efficiency, minimal downtime, and comprehensive operational control.

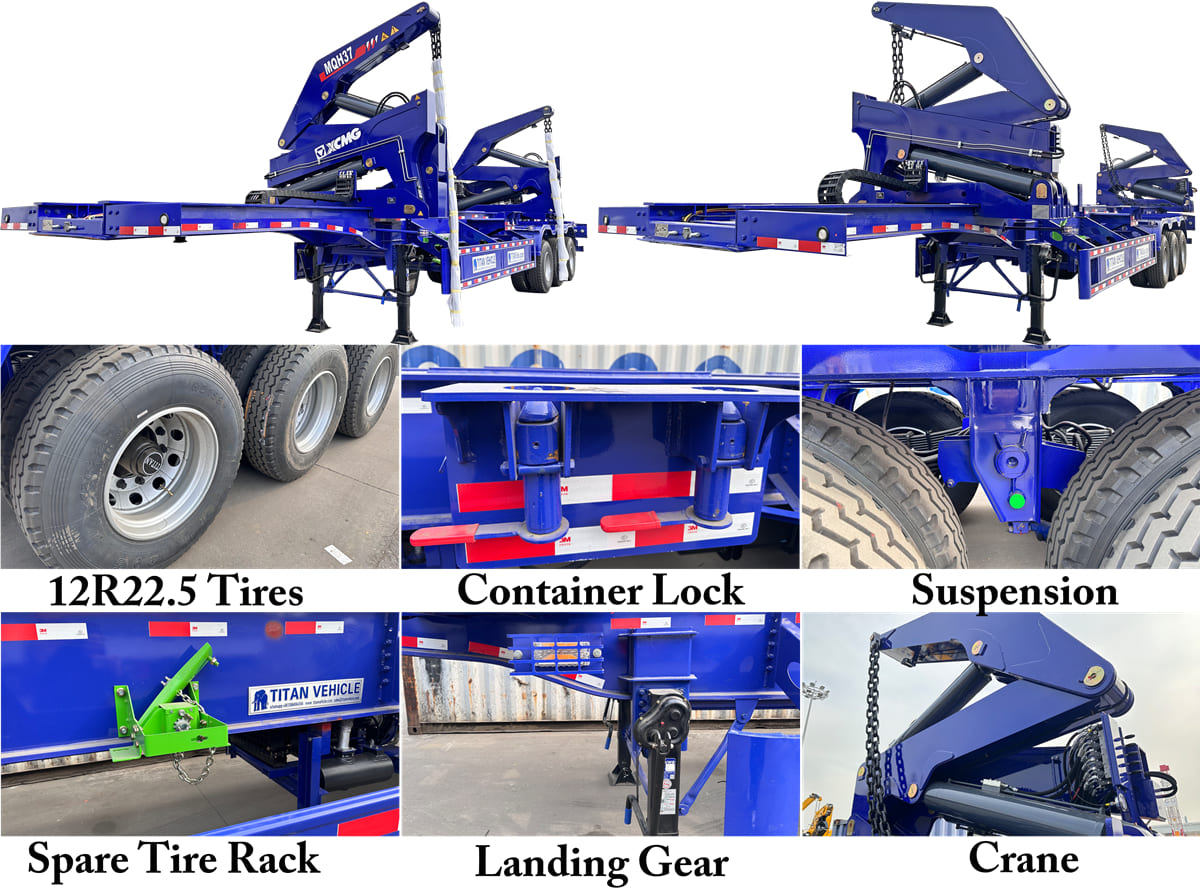

TITAN Side Lifter Structure and Components
1. What is a side loader trailer for a container?
2. This is how container side loader trailer work.
3. How do you move a 20 foot container?
4.Considerations for container side loader trailer for sale Transport
Container side loader trailer handle containers in areas where space is limited. The container side loader quickly and safely stacks 20ft and 40ft fully loaded, hazardous and fragile containers on top of each other. Side loader can be productive all day, loading, transporting and unloading containers then moving onto the next job. There is just one piece of equipment to manage and maintain, reducing your operating costs. Container side loader trailer can transport more than just containers. They can handle up to 45 tonnes of cargo, industrial equipment, special trailers and specialized containers e.g. fuel, portable buildings, etc.
The loading and unloading of containers can take place on the ground, reducing the risk of injury. The waiting time is eliminated so that other lift-type machines are available, as well as the need for expensive land preparation. This not only saves money for the transport operator; It also saves time for importers, manufacturers, and distributors. When transporting a container side loader trailer by road, operators can easily load containers into trailers without the help of cranes.
Container Side Loader Trailer Video Display
1.The driver will conduct a site inspection to make sure there is adequate space for him to safely unload the container. A side loader drives into position and then offloads to the driver’s side of the trailer, the container once grounded will sit approximately 500mm from and parallel to the trailer.
2. Operators have the ability to transfer fully loaded containers, without the need to wait for other lifting type machinery to arrive or become available. This eliminates the cost associated with leaving trailers on site and increases the opportunities for the number of pick-ups and drop-offs in each cycle.
Container Side Loader Trailer For Sale
3.It can also free up staff and equipment for other tasks, thus increasing efficiency and reducing operational costs. Another great advantage to transport operators is the capacity to deliver loaded containers to the importer/customer on the ground for them to unpack in their own time, leaving the transport operator free to attend to the next job.
4.The container side loader trailer driver can unload the container in minutes on his own, moving 20ft and 40ft containers using the same piece of container side loader trailer. There is no need for additional equipment or personnel, so saving on additional costs. Containers can be safely transferred to the ground in just minutes, increasing efficiencies and productivity.
5.Differentiated cargo can be loaded and unloaded without disruption to the client's business. The side loader action allows containers to be safely placed exactly where the client requires it, for ease of access to load and unload as required.
Details of Container Side Loader Trailer Manufacturer
Technical characteristics of Container Side Loader
1. TITAN container side loader integrates the functions of loading, unloading and transporting containers, which is efficient and reliable;
2. The main supporting assembly uses well-known domestic brands with reliable quality and safe operation; The longitudinal beam of the container side loader trailer frame adopts a high-section variable-section design, and the crane structural parts are welded with high-strength steel plates. The entire trailer has undergone stress testing to meet the load-bearing requirements;
Drawing of Container Side Loader
3.TITAN container side loader can slide back and forth to adapt to the loading and unloading and transportation of standard 20-foot and 40-foot containers; The wireless remote control system is adopted for lifting operation, equipped with imported remote control, which is easy to operate and reliable in micro-movement;
4. Retain manual emergency operation mode and safety insurance; TITAN container side loader is equipped with imported electromagnetic proportional valves for precise control; No-load and heavy-load double-speed operation;
5.The crane adopts a dual-pump dual-circuit hydraulic system, which is not affected by unbalanced load and operates reliably;
6.Hoisting operation adopts intelligent safety protection system to intelligently lock dangerous operations. The trailer safety control system is equipped with a one-key flameout switch; TITAN container side loader is equipped with imported centralized lubrication system, and the electric control is easy to operate;
Customer feedback of Container Side Loader Price
If you are thinking of using container side loader trailer delivery for your business, there are some points to take into consideration. This mainly involves making sure your site is appropriate to accommodate this type of trailer. As flexible as the use of a container side loader trailer is, please pay attention to something:
1.Make sure you have at least 4.2 meters height for travel under trees, power lines, factory/house eves, and doorways. As well, the lifting arms will need about 6.5 meters during unloading, so be sure you allow for this much space above where the unloading will take place.
2.The land underneath where the container side loader trailer is unloading will need to be relatively level and sealed or compacted. If the site is sloped, the container side loader may still be able to unload by parking across from the slope.
3.The cargo container is offloaded from the trailer onto the ground via the trailer’s drivers’ side parallel to the side of the trailer and about half a meter away. There will need to be at least three to four meters of clear space in front of the container side loader for it to leave after unloading.
4.Although most cargo containers are 2.44 meters wide, there needs to be an opening of at least 2.9 meters wide to fully accommodate the trailer.
Container side loaders are specialized lift trailers designed for areas that are extremely tight or where loads are longer than normal and need to be transported in a sideways direction. It is ideally suited for indoor and outdoor use, able to withstand the elements and endure heavy use year after year.
Transport goods with ease, and in a safe and efficient manner. Get in touch with us today and ask us about our container side loader.
