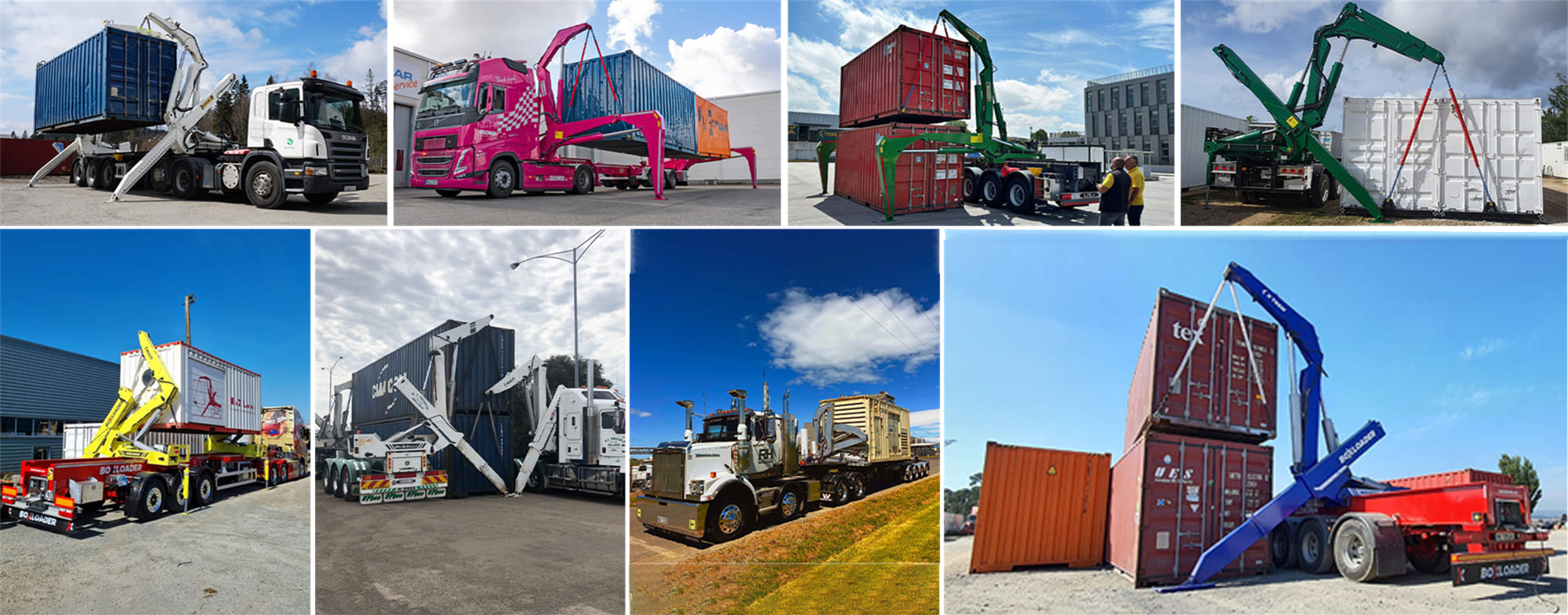

When several containers must be delivered in the same yard, the side lifter trailer for sale can pick up the containers on the companion trailers to ground them. Waiting time for trucks and trailers is drastically reduced, thus improving the efficiency and profitability of each trip.
With the growth of multimodal transport and the constant search of more ecologically responsible solutions to reduce the carbon footprint, more and more containers are transported via rail. With a side lifter trailer for sale, transferring from/to rail wagons is made possible without special quays or equipments. It allows developing small rail hubs or rail terminals (inside factories for example).
Grounding and lifting represent 90% of a side lifter trailer for sale tasks. Once on the ground, the sidelifter goes to another job, while the container can be stuffed or unstuffed more easily, without the need of specific infrastructure such as platforms or loading ramps. Forklifts can therefore enter the container. The side lifter trailer for sale range of equipments allows to handle containers even on rough ground.
Lack of space is a recurrent feature of today’s logistics world. Double stacking of containers can be a very useful and economical solution. The Boxloader can double stack two high cube containers on the ground without chain shorteners. It avoids investing in a piece of specific equipment.
In addition to being a container transporter, the side lifter trailer for sale can be used as a primary intermodal transport tool to transfer containers directly from rail wagons to other trailers. All it takes is enough space to load or unload from the rail wagon. Goods can be loaded directly into containers at the point of production and quickly transported to the rail siding. Ability to transport agricultural products and fresh goods faster to help reduce losses. Suitable for rail operations of any size.

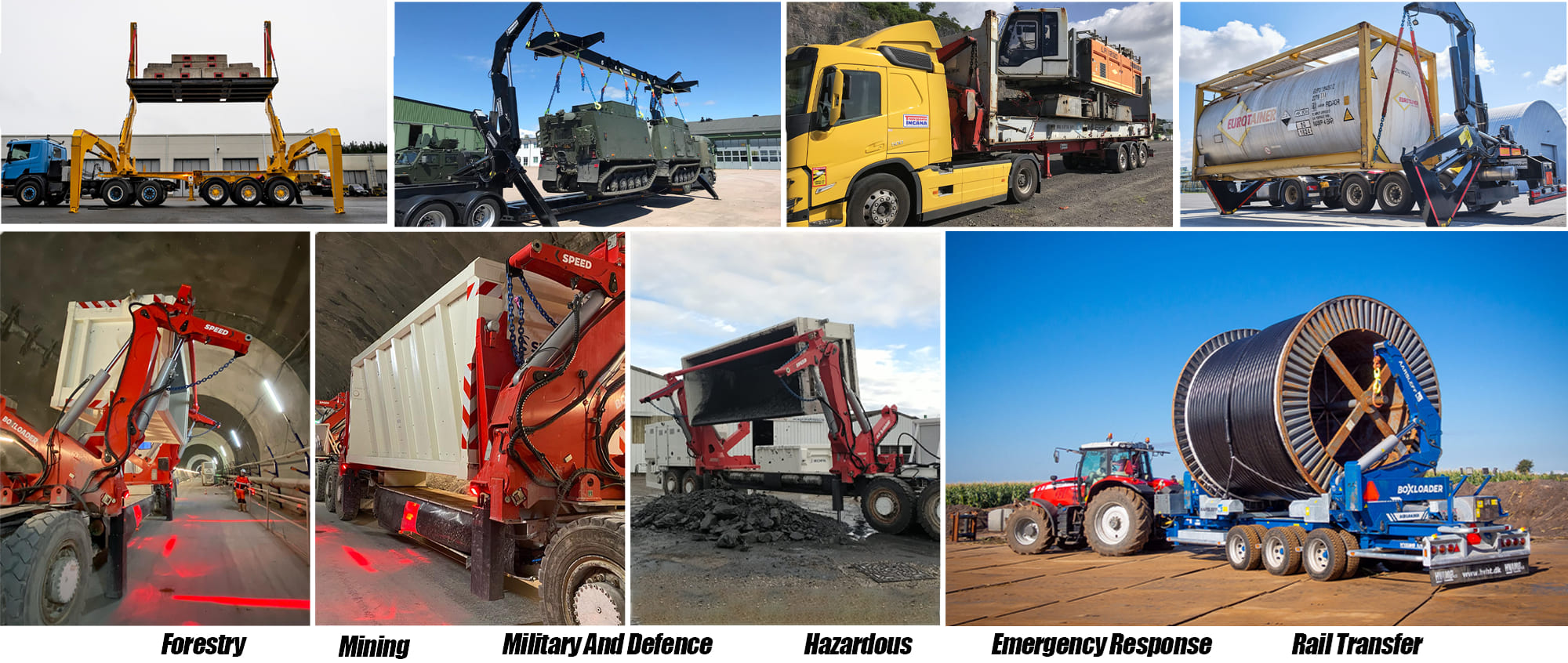

Side lifter trailer for sale is an indispensable asset for modern military organizations. Side lifter trailer for sale enables military planners to quickly and efficiently lift, transport and store any containerized material, including weapons, supplies, food aid, small assault vehicles, and even containerized portable buildings. Side lifter trailer for sale has a reputation for versatility, durability, and ease of operation.
Side lifter trailer for sale can transport modules ranging from 20 feet to 48 feet in length and weighing up to 45 tons. Ability to load and unload on its own without the need for forklifts or other heavy equipment.
Containerized portable buildings such as command centers, medical wards, cleanrooms, kitchens, refrigerated coolers, barracks, offices and supply stores can be transported.
Side lifter trailer for sale seeks a rugged and reliable transport solution. Side lifts are particularly popular in the forestry industry for their ability to lift logging platforms and cages. By eliminating the need to leave fully loaded trucks and trailers in storage, side lifts increase productivity and reduce personnel downtime.
The load-carrying capacity of logging platforms/cages means that full cages can be left in storage instead of on trucks and trailers.
With its inherently safe design, precise operation and proven performance, side lifter trailer for sale offers the best solution for those who need to transport chemicals, fuel tanks and other hazardous cargo. Top lifts such as ISO tanks provide further safety and operational control for hazardous, flammable or fragile cargo. Side lifter trailer for sale is ideal for the safe and efficient handling of fuel tanks, chemicals, ammunition, flammable materials, fireworks, compressed air, hazardous waste and other hazardous cargo.
Side lifter trailers for sale can handle up to 45 tons of cargo, making them ideal for heavy industrial use. Ideal for urban applications, including house moving containers, construction cargo, and gas cylinders.
Side lifter trailers for sale have a wide range of uses, including transporting bulk containers, excavators, military tanks, cars, circus tents, stands, construction materials, disaster relief supplies, and more.
Side lifter trailers for sale are also used to build (and subsequently remove) temporary container walls to protect roads and homes from potential rock falls or landslides.
| Unloading Container By 20ft Sideloader Truck | Containers Double Stacking | 40ft Side Lifter Loading and Unloading |
1. Preparation before operation
The operator must undergo professional training, be familiar with the operation of the chassis and crane, and understand the performance, operation methods and safety precautions of side lifter trailer for sale.
2. Site inspection:
Make sure the work site is open and there are no high-voltage wires, and avoid operating under them.
The working ground should be hard and flat, with a slope of less than 3%, and the ground will not sink during operation. Soft ground may cause the vehicle to tilt or sink. If it is necessary to operate on such ground, a pad should be placed at the bottom of the stabilizing leg to increase the force-bearing area.
Check the work area and the path to the work site to ensure that there are no obstacles and clarify the location of other machinery.
Ensure that the work site has sufficient lighting to clearly observe the movement of equipment and cargo.
3. Equipment inspection:
Check the system device of the side lifter trailer for sale to ensure that there is no damage or wear and the circuit is not loose. Turn on the power switch and check whether the emergency stop function is normal.
4. Loading and unloading operations
Start and idle: Open the engine control box, start the engine, let it idle for about 10 seconds, and then adjust the speed to 1600r/min-2600r/min by adjusting the handle.
Power on: Turn on the power of the remote control and the electrical system control box of the side lifter trailer for sale.
Extend the outriggers: Extend the tilting and stabilizing outriggers. Be careful not to operate the boom before the outriggers are fully supported.
Connect and unlock: Lock the four locks of the chain at the bottom of the container and rotate the turn lock to unlock the container.
Unloading operation: Use the remote control to control the boom to remove the container from the side lifter trailer for sale.
Disassembly and retraction: Remove the lifting chain and retract the boom and stabilizing outriggers in sequence.
Shut down the engine: Adjust the engine speed to idle, shut down the engine, and shut down all power.
5. Post-operation maintenance
Cleaning equipment: clean the dust, dirt, debris, etc. on the side lifter trailer for sale and the crane, and check whether there is any cargo residue or damage to the equipment.
Inspecting parts: check whether the crane arm, outriggers, chains, locks and other parts are worn, deformed, cracked or damaged. If there is any problem, repair or replace them in time.
Maintaining equipment: regularly maintain the engine, hydraulic system, electrical system, etc., replace the engine oil, filter, hydraulic oil, etc., to ensure that the equipment is in good operating condition.
