With 36 tonnes Safe working load the Hammar side loader can easily handle fully loaded containers.

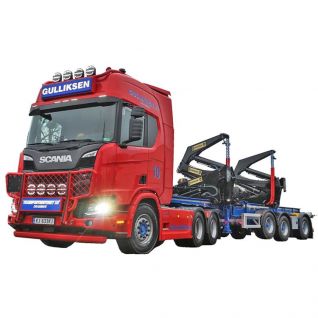

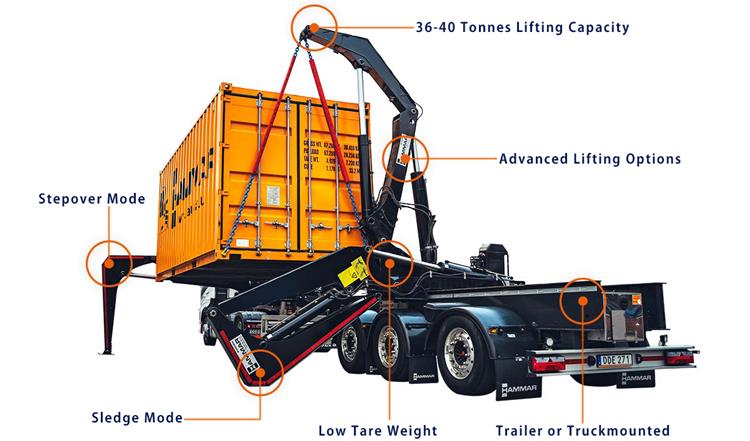

The Hammar side loader can be equipped with a number of advanced lifting options, such as high cube stacking, container spreader and extendable cranes. The Hammar sideloader can be mounted on a numberof different trailer models or directly on a truck chassis.
Hammar Side Loader for Sale In Fiji | Hammar 110 Sideloader
Hammar Side Loader for Sale In Fiji | Hammar 110 Sideloader
Hammar Side Loader for Sale In Fiji | Hammar 110 Sideloader
Hammar Side Loader for Sale In Fiji | Hammar 110 Sideloader
Max. lifting capacity: 37Ton
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Landing gear: JOST
Power source: Power take-off (equipped)

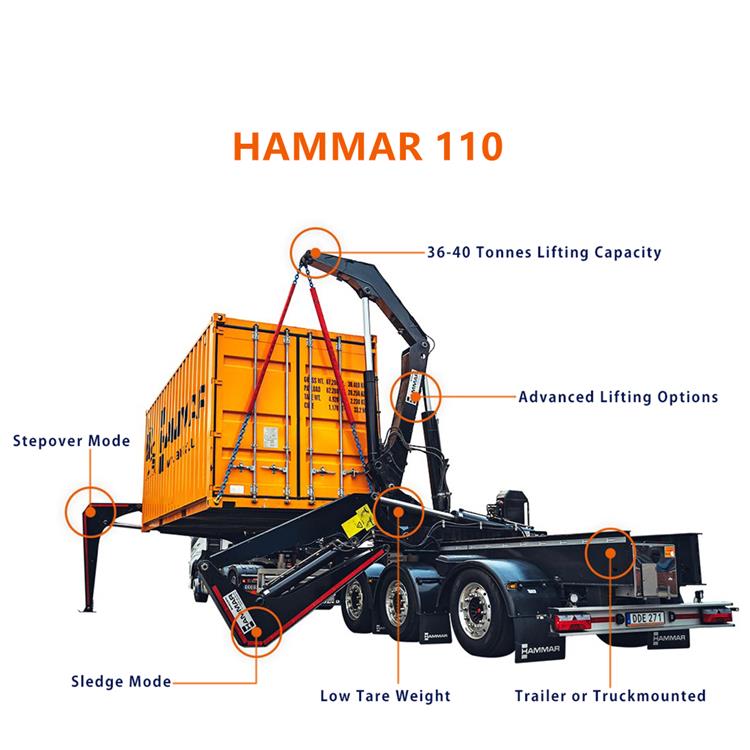

Hammar 110 sideloader is the lightest Sideloader in its class, with a tare weight of 8,4 tonnes with 3-axles and 20'-40' capacity.

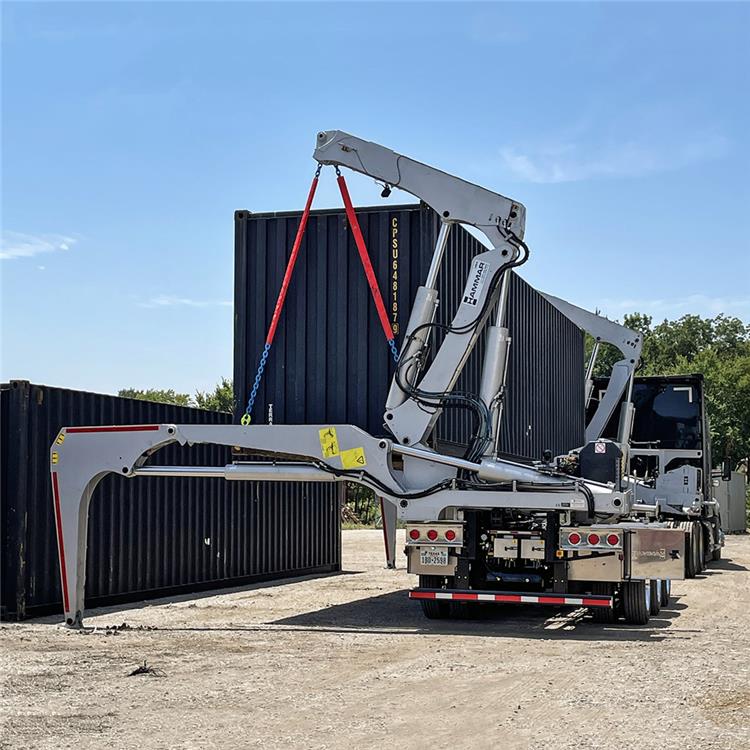

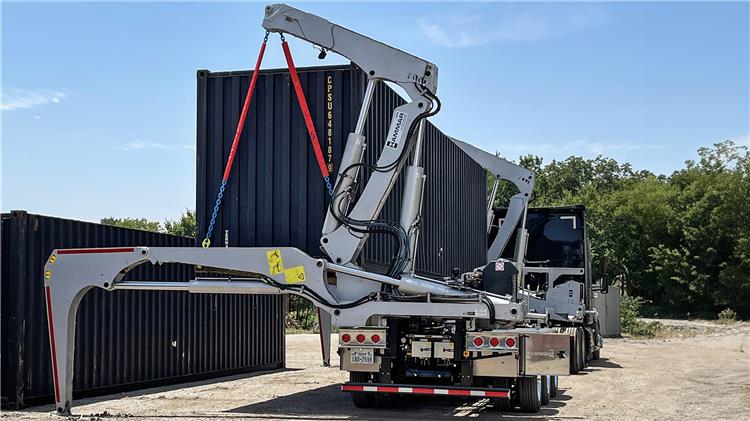

One of two stabilizer modes available on the Hammar side loader model, proves faster ground-level handling and requires less space to operate.
One of two stabilizer modes available on the Hammar 110 side loader. Provides fast, safe and easy transferring to/from another chassis and gives high stability with extra low ground pressure.
