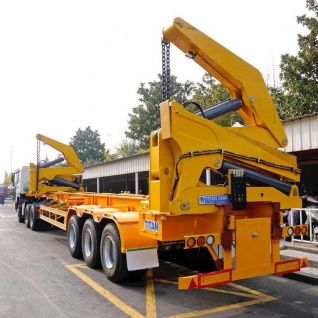

TITAN container side lifter trailer for sale integrates the functions of loading, unloading and transporting containers, which is efficient and reliable
The longitudinal beam of the container side lifter trailer frame adopts a high-section variable-section design, and the crane structural parts are welded with high-strength steel plates.
Container Side Lifter Trailer for Sale | 37T Side Lift Container Transport
Container Side Lifter Trailer for Sale | 37T Side Lift Container Transport
Container Side Lifter Trailer for Sale | 37T Side Lift Container Transport
Max. lifting capacity: 37Ton
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST

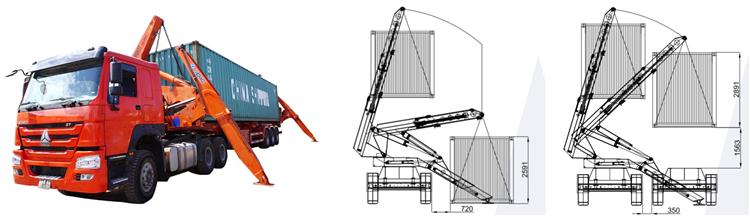

1. Double stacking of containers
Container side lifter trailer for sale manufacturers can double stack two tall cube containers on the ground without using chain shorteners. It avoids investment in specific equipment.
2. Transfer from/to other trailers
When multiple containers have to be delivered within the same yard, side lift container transport can pick up containers on other trailers and ground them.
3. Grounding and lifting of containers
Once on the ground, the side lift container price moves to another job, and the container can be loaded or unloaded more easily without the need for specific infrastructures such as platforms or loading ramps.

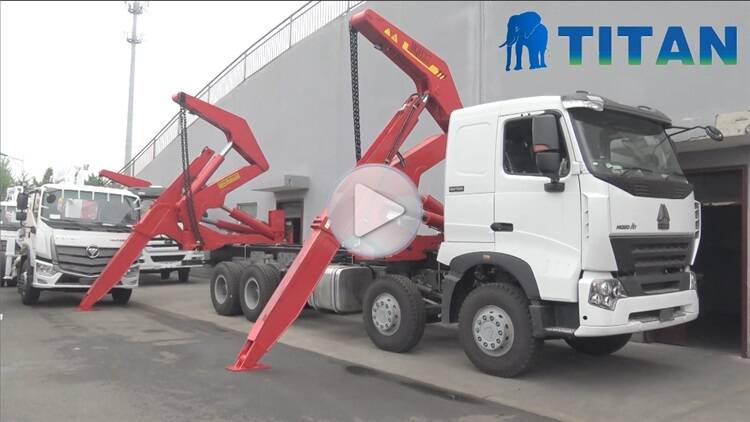

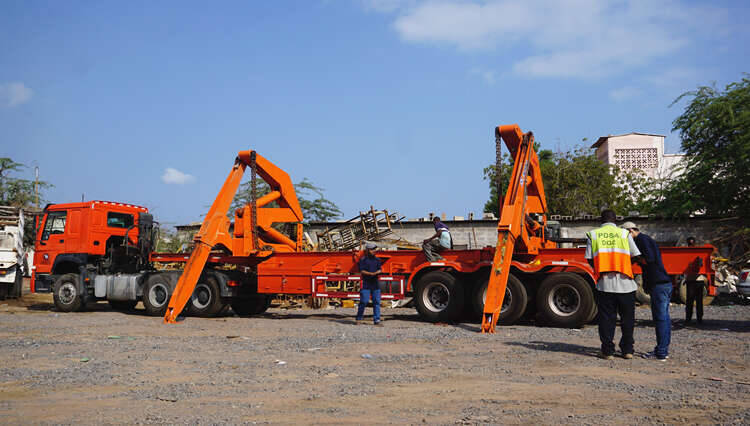

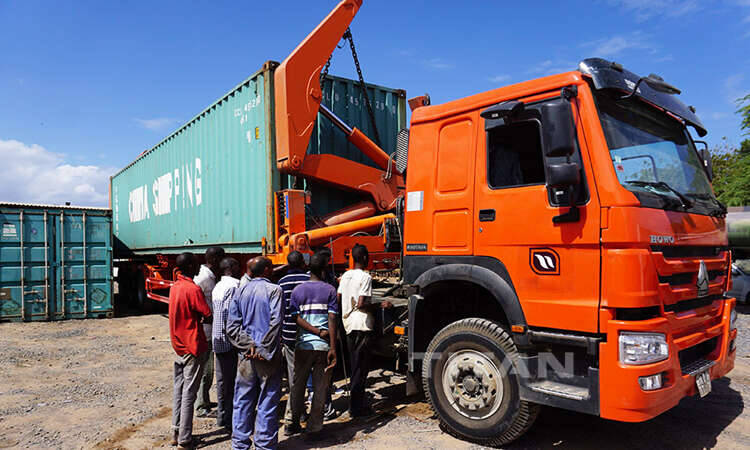

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
