Boxloader container side loader trailer is a special transport equipment designed for efficient loading and unloading of containers.
It realizes autonomous loading and unloading of containers through a lateral hydraulic lifting system without relying on cranes or forklifts. Boxloader trailers are mainly used in container transshipment scenarios such as ports, logistics parks, and railway freight yards.

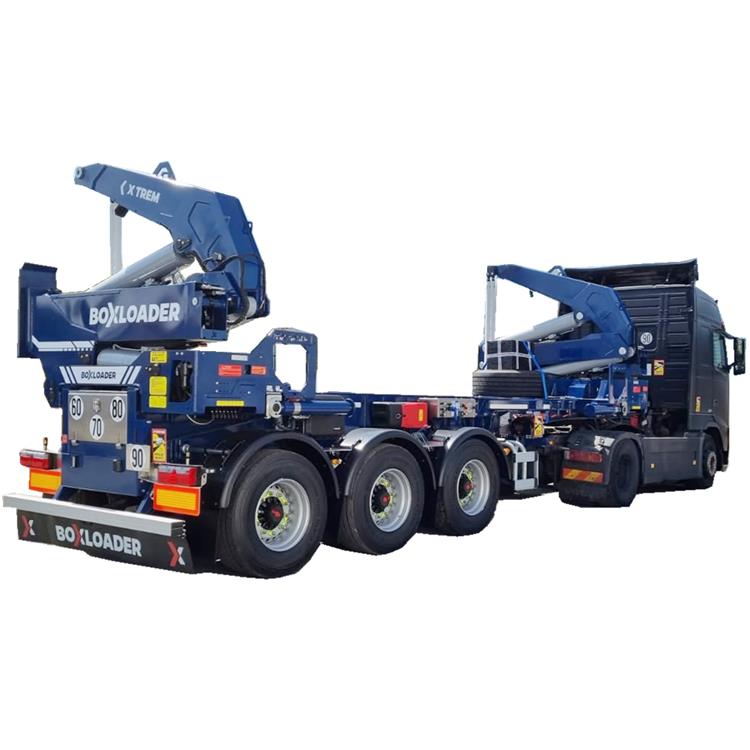

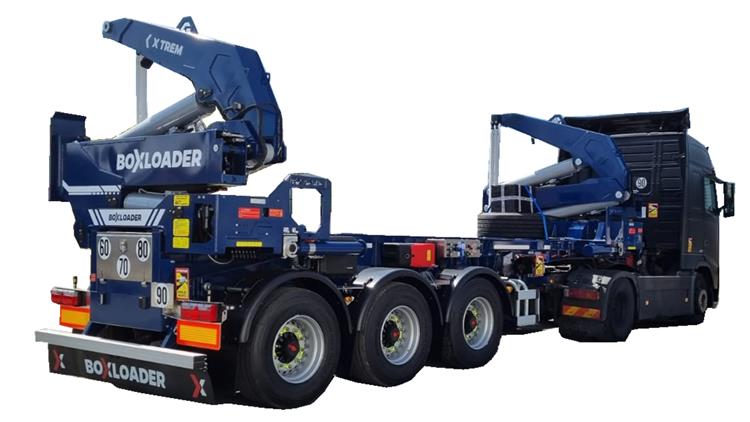

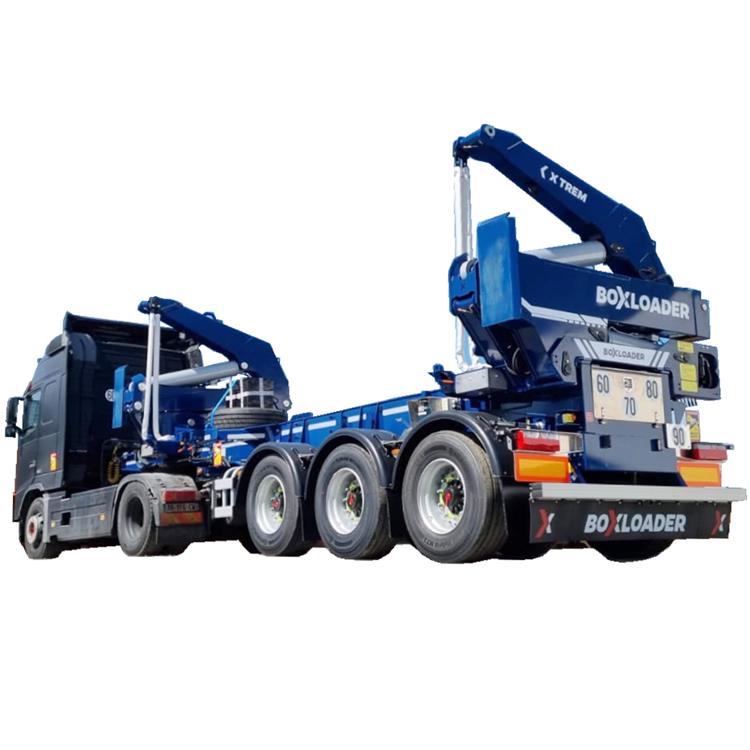

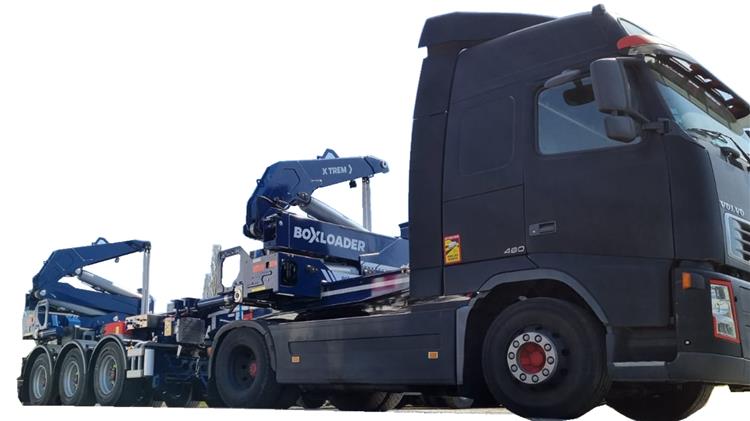

Boxloader 40ft Container Side Loader Trailer for Sale In Ivory Coast
Boxloader 40ft Container Side Loader Trailer for Sale In Ivory Coast
Max. lifting capacity: 45Ton
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Landing gear: JOST
Power source: Power take-off (equipped)
The Boxloader container side loader trailer is a specialized semitrailer designed to efficiently load and unload containers from the side rather than the rear. It is widely used in intermodal, port and logistics operations.
The Boxloader trailer system enables operators to load and unload containers without additional equipment, saving time and labor costs. It also works well in congested areas (ports, warehouses) where rear loading and unloading is difficult.
The Boxloader container side loader trailer can load and unload two 20-foot containers (or one 40-foot/45-foot container), reducing empty container return transportation.
The Boxloader trailer only takes a few minutes to load and unload, improving fleet utilization.
The Boxloader trailer loads and unloads containers directly from the side, which causes less wear and tear compared to sliding or dragging.
The hydraulic arm of the Boxloader container side loader trailer secures the container to prevent it from falling or misalignment.
The Boxloader trailer is compatible with 20-foot, 40-foot, 45-foot, high-cube containers and refrigerated containers.
The Boxloader container side loader trailer can load containers onto a standard chassis, flatbed or other trailers.
