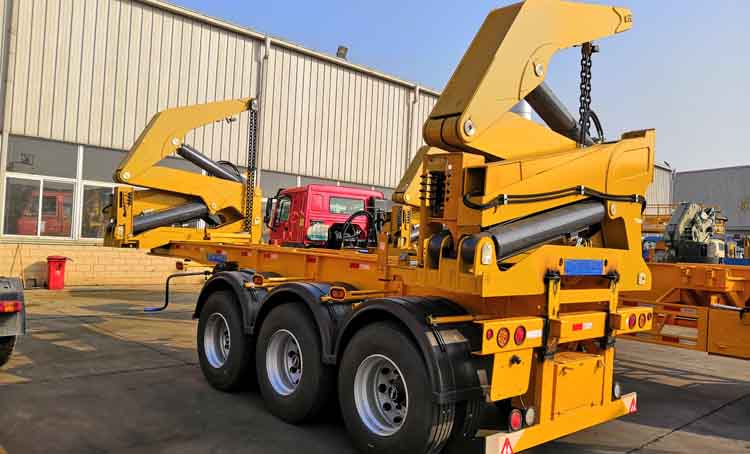

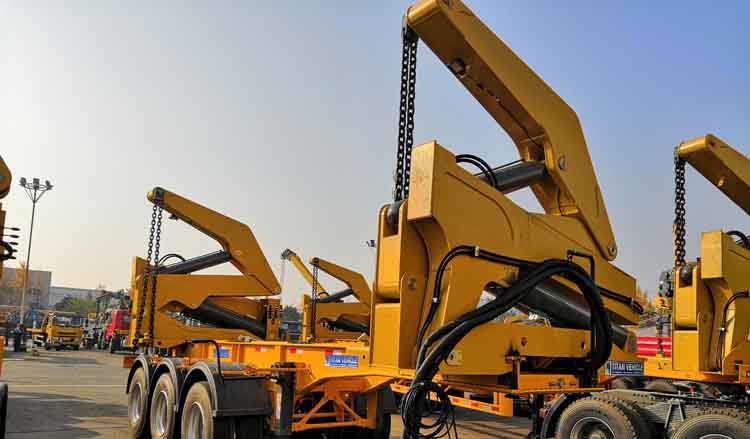

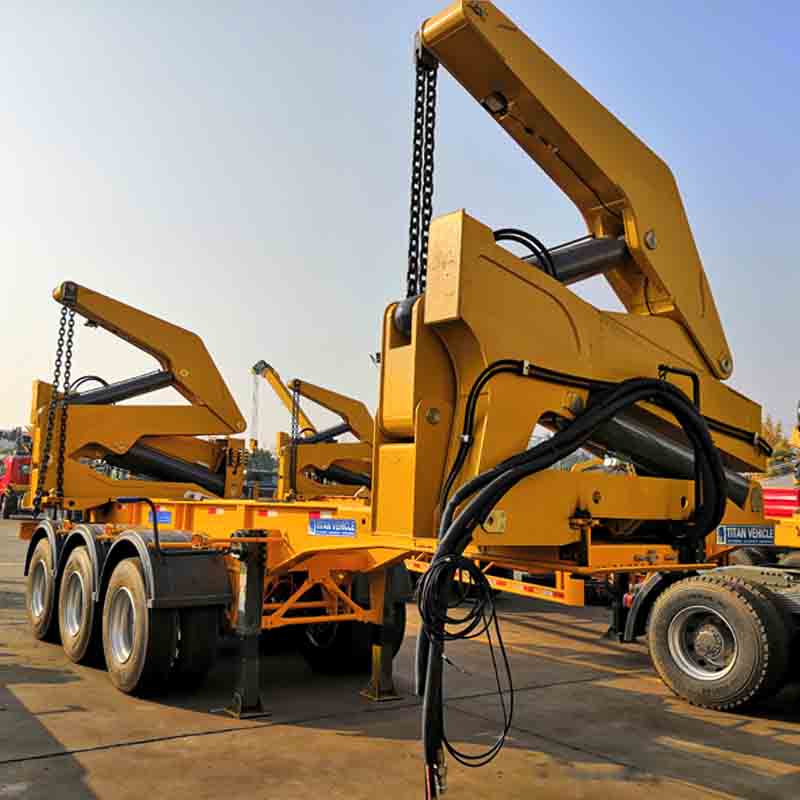

Side Lifter Container facilitates container handling and transportation. The sidelifter loads and unloads containers via a pair of hydraulic powered cranes mounted at each end of the trailer chassis. A standard sidelifter is also able to stack a container at a two containers' height on the ground.
Side Lifter Container can provide 20ft and 40ft container delivery. Side loader chassis with reinforced design, can carry 80 tons of force, service life of more than ten years. Side loader crane can control its legs and hanger within 30m. This technology provides convenience and safety for the operator.
37ton Side Lifter Box Loader Trailer
Max.lifting capacity ：45 ton
Funtion：20/40 foot container side lift trailer
Trailer Chassis：14100mm * 2500mm *4100mm
Axles：3 axles
Suspension：Heavy duty mechanical suspension
Tire：12 units
King pin：90#
Hydraulic pump: Gear type Casappa Italy
Hydraulic direction control valves: AMCA Holand
Motor: Japanese Kubota diesel engine
• Detailed trailer side loader operating instructions also , we have the Video Explanation
• Overseas engineer to provide technical service
• You can reach us at any time and get a rapid response
• Competent technical service
• Rapid and safe deliveries of spare parts
How to check the hydraulic system every month？
1. Check hydraulic oil level every day, add it if necessary
2. Check hydraulic pipeline, tube joint and cylinder, if leak oil, tighten the joints or replace seals if found leak oil
3. Check wear for slide pads, replace it if wear
4. Clean operation valve surface
5. Clean or replace hydraulic oil filter core every 6 months, remove oil plug, drain the oil, then remove the shell, clean or replace filter core
6. Keep hydraulic oil free of dust, filter hydraulic oil every 4 to 6 months. filter precision is 10, replace it if you found turbidity, dirty etc abnormal phenomenon, and clean oil tank, replace hydraulic oil every year

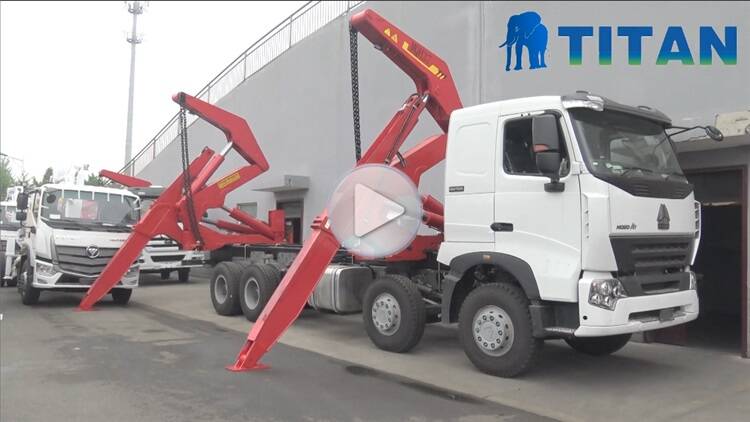

Through this videos, you can learn about different types of sidelifter trailers,including 20ft self loader truck, 20ft sidelifter and 40ft container side loader trailer, as well as the process, testing, packaging and customer feedback, etc.
