Madagascar customers purchased 40 ft container loader trailer for container transshipment. The customer has business contacts in Mozambique and found that TITAN’s container loader trailer is very popular in Mozambique, so the customer took the initiative to contact our sales manager. Although it took a lot of time to confirm the configuration, it also ensured the quality of the 40 ft container loader trailer rigorousness.
Because it is the first time for the customer to use it, we have included a manual and instructional video. Of course, customers can also directly inquire about TITAN's after-sales department. The customer is very satisfied with this and said that he will promote TITAN's 40 ft container loader trailer locally. He hopes that such a good product and service should serve more people.

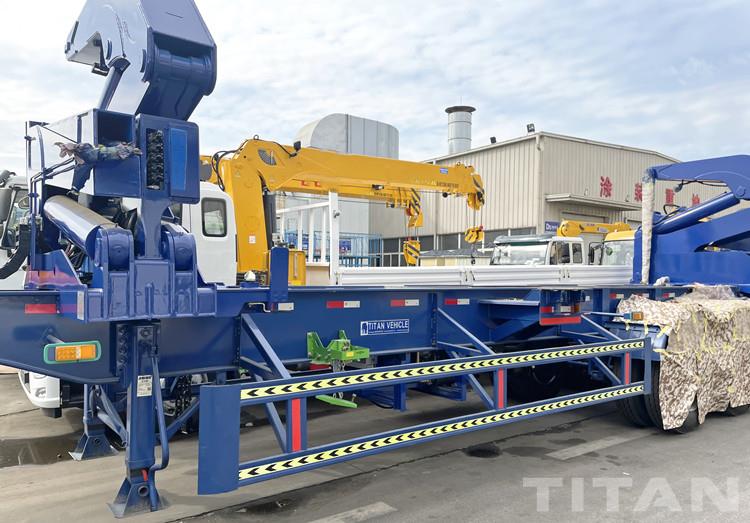

40 Ft Container Loader Trailer will be sent to Madagascar
1. The design of the lift cylinder and the knuckle legs in a straight line provides multiple advantages for the TITAN container container loader trailer. When the knuckle legs are in the working position, the momentum arm from the lift cylinder is doubled; this keeps the cylinder diameter small. By integrating the crane and outriggers online, the side loader is only slightly longer than the standard container trailer. When the crane outrigger is folded to the transport position, it takes up less space than the cross-section of the container.
Due to this configuration, the momentum from the lifting cylinder is directly transmitted from the knuckle leg down to the ground. Therefore, the stress in the crane base and chassis is minimized, and there is no twist between the main boom and the outrigger.
2. Due to design reasons, the TITAN container loader trailer has a very low tare weight.
The integrated security of the Steelbro 40 ft container container loader trailer makes handling easy and worry-free. The unique geometry in the design prevents accidental placement of the container in an unstable position. This means you don’t have to deal with additional cantilever brackets at the rear of the side loader, so you can reduce the number of maintenance parts. cylinder integrated into the arm gear.

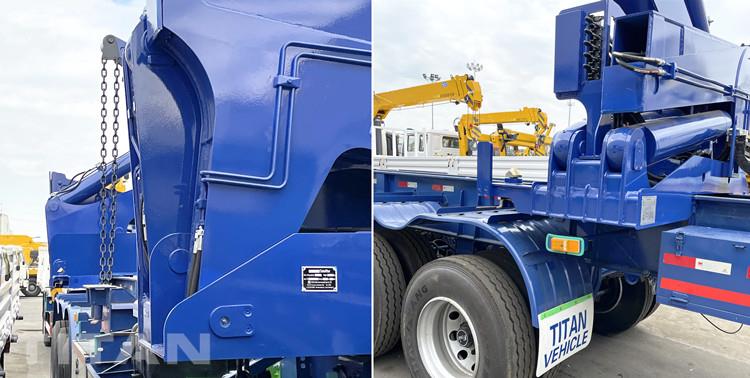

Details of 40 Ft Container Steelbro Container Loader Trailer Trailer for Sale
3. The welding structure of the Steelbro container loader trailer is made of ultra-high-strength steel, which can ensure the highest possible strength while still reducing the load to increase the load. Each side lifter includes the main boom, which has a 2-step telescopic boom and is operated by a double-acting telescopic
4. All cylinders on the TITAN container loader trailer are equipped with sturdy low-friction bearings and have special lubrication chambers to provide excellent lubrication, low maintenance cost and long life. All cylinders on the Titan side lifter are double-acting, with honing / roller polishing cylinders and hard chrome-plated and polished cylinder rods.
5. The TITAN container loader trailer for sale is equipped with a momentum limiting valve. The directional control valve for smooth operation is provided by a heavy-duty, high-pressure, fixed displacement piston pump powered by the power output shaft.
40Ft Container Steelbro Sidelifter Trailer for Sale in Madagascar
