Side loader container and unloading semi-trailers are mainly used in ports, stations, freight yards and other places to complete container loading and unloading and transportation operations. The side side loader container and unloading semi-trailer independently developed and produced by TITAN integrates loading, unloading, stacking, and transportation. It can load and unload containers of 20 or 40 feet or other specifications.

The implementation of 1 row and 2 layer container loading, unloading and stacking operations greatly improves the operation efficiency and the use of equipment. The whole vehicle has a number of internationally leading core technologies: patented side side loader container and unloading container technology, dual-pump dual-circuit technology, advanced electric proportional control technology, and intelligent safety protection technology

Technology, remote wireless remote control technology, etc., won praise from customers for its efficient and reliable operation performance and safety

Core Technology

a. Synchronous movement technology of boom

b. Using closed-loop control technology, flow control and angle feedback are combined, and the boom movement can be adjusted by adjusting the hydraulic flow of the boom cylinder to make

c. The hoisting points are synchronized during the movement of each boom to achieve synchronization before and after container loading and unloading, which is convenient for container aligning operations.

d. Finite element analysis, dynamic simulation technology

e. Through advanced finite element analysis, kinematics and dynamics simulation analysis and calculation, and accurate data support as the basis of design, the entire

f. The car has a reasonable structure system, excellent performance, and excellent overall machine reliability and stability.

Remote wireless control technology

a. The whole vehicle is equipped with Sany's self-made wireless remote control, which can realize the remote wireless control of the movement of the outriggers and hangers within 30m. The operation is convenient and fast.

b. Timely and effectively ensure the safety of staff.

c. Equipped with a wireless throttle potentiometer, it can realize remote and wireless control of the engine throttle within 30m, and realize the adjustment of engine speed, signal

e. Stable transmission and fast response.

Advanced electric proportional control technology

a. The device is controlled by a pressure-compensated electric proportional valve to realize the stepless speed regulation function to ensure smooth operation of the whole machine and micro-motion performance

Good, precise control.

b. Intelligent safety protection system

c. Equipped with a tilt sensor to detect the status of the whole machine in real time. When the whole vehicle is inclined, it can automatically alarm and intelligently lock related dangerous operations to ensure the safe operation of the whole vehicle.

d. Patented technology of side side loader container and unloading container

e. Integrating lifting, loading and unloading, and transportation, it can make the side loader container and unloading of containers or other goods faster and more convenient;

Through the independent sliding of the middle hanger, and with the front and rear hangers, it can load and unload empty or full containers of 20 or 40 feet or other specifications, or side loader container and unloading of other goods, with a wide range of uses and high equipment utilization;

Through the action of the hanger, the loading and unloading and stacking operations of 1 row and 2 layers of containers can be implemented, which greatly improves the operation efficiency and the purpose of the equipment;

Through the advanced operation and control system, only one person is required to operate, and it can be operated at close range or remotely. The operation is convenient and the loading and unloading efficiency is high.

It is well known that Sidelifter units will overturn like other cranes, especially when lifting heavy objects heavier than the maximum allowable weight or operating with a radius larger than the maximum allowable radius. The side lift must always be operated by trained personnel only.

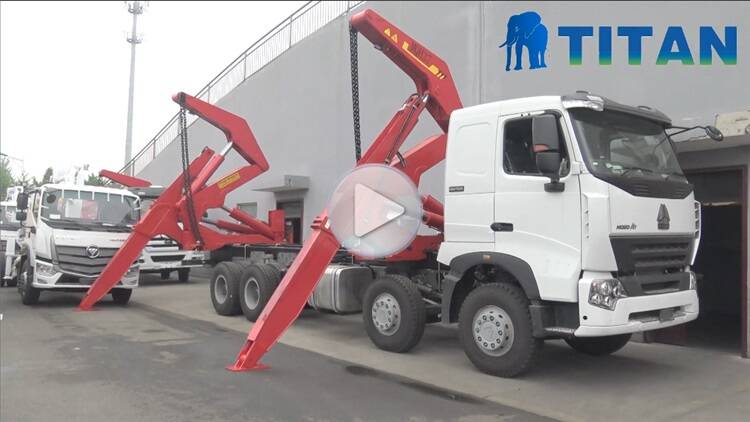

Through the video below, you can learn about different types of sidelifter semi trailers (likeside lifter container , container loading trailer , side loader , side loader container , sideloader trailer)

And the process, testing, packaging and customer feedback, etc.
