How to unloading and loading container with the contaienr side loader?

| 2020-04-27

Learn More About Side Loader Transport in China TITAN VEHICLE

A leading transport company based in china,TITAN VEHICLE, provides safe, reliable and professional transportation services for clients across Africa. With a team of experienced drivers and ongoing investments in our vehicle fleet, including highly versatile side loader trucks, we’re able to provide the full spectrum of transportation services to clients in a broad range of industries and sectors.

sidelifter container trailer for salesidelifter container trailer for sale

If you need to transport containers or need to load and unload containers at the terminal,So you need to stuff or strip a container.There are lots of different equipment and processes side loader that can help you get the job done.We think that container side loader is more suitable for you.



The swing lifts deliver the container and lift it on and off the deck for shippers to process the container at ground level.Fast, safe and easy for a trained driver to operate, swing lifts are an excellent way to position containers on the ground.There are some operations of the unloading about side loader.

How to unloading container with the container side loader trailerSidelifter container trailer for sale

Unloading container with Side lifter

1) Open the engine control box, start the engine, let the engine run at idle speed for about 10s, and then adjust it to 1600 r / min ~ 2600 r / min through the regulator handle;

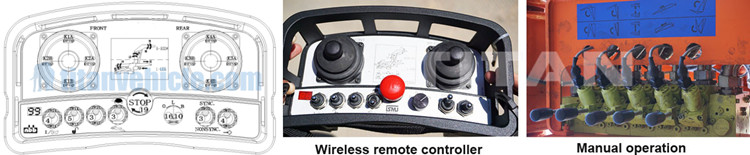

control system with the container side loaderControl system with the container side loader

2) Turn on the power of the remote control and the power supply of the electrical system control box;

3) Extend the inclined stabilizer legs (Note: Do not operate the boom before fully supporting the stabilizer legs);

4) Lock the four locks of the chain to the bottom of the container and rotate the rotary lock to unlock the container;

5) Use the remote control to control the boom to unload the container from the semi-trailer without interference. It is best to keep the distance between the semi-trailer and the container from 300mm to 500mm;

6) Remove the sling chain and retract the boom and stabilizer in order;

7) Adjust the engine speed to idle speed and turn off the engine and turn off all power.



As highly adaptable container transportation trucks, the advantages of using side loaders are profuse, making them an excellent choice whenever you need cost-effective, reliable transportation delivered by a transport company. Here are five reasons why you should choose side loader transport when transporting shipping containers and containerized equipment and generators.

1.No additional loading equipment is required, making side loader transport cost-effective

2.Containers can be transferred to/from the ground, other containers, trucks, trains, etc.

3.Provided clearance requirements are met, container transfers can take place anywhere

4.Side loaders are the most versatile option for loading and transporting large containers

5.They’re more accurate and precise than other container loading/transport vehicles



Furthermore, as side loaders are extremely accurate and enable 20ft and 40ft containers to be loaded and unloaded to/from the ground and don’t require additional equipment or machinery, they help to reduce the very real risk of injury to workers in the immediate area.In addition, loading is equally important.

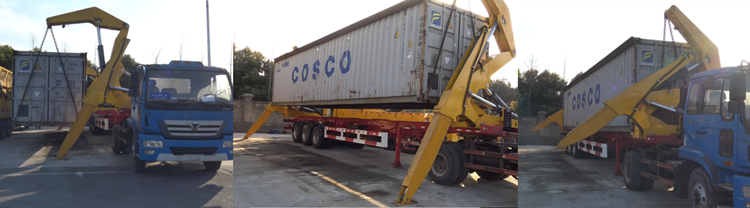

side lift container transportSide lift container transport

Loading container with Container side loader

1) Place the semi-suspension vehicle in an appropriate position close to the container, it is best to maintain a distance of 300mm~500mm between the vehicle and the container;

2) Open the engine control box, start the engine, let the engine run at idle speed for about 10s, and then adjust it to 1600 r/min ~ 2600 r/min through the regulator handle;

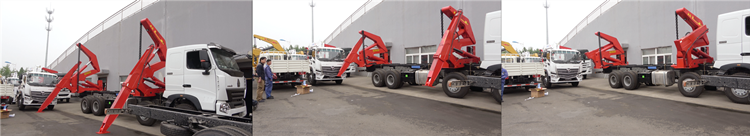

what is side loaderwhat is side loader

3) Turn on the power supply of the remote control and the power supply of the electrical system control box;

4) Adjust and replace the equipment to place the front and rear lifting equipment in the correct position. When the 40-foot container is lifted, the sliding cylinder of the replacement device is fully extended, and when the 20-foot container is lifted, it is fully closed

5) Extend the inclined stabilizer legs.Do not operate the boom before fully supporting the stabilizer legs

6) Open the side lifter to a suitable position and lock the four locks of the chain on the bottom of the container

7) Control the boom with a remote control, lift the container and install it on the semi-trailer without interference

8) Rotate the rotary lock to lock the container and retract the boom and stabilizer in sequence



Instability Warnings

TITAN side loader Load Monitoring uses its intelligent software and sensors to monitor and control the sidelifter lifting operation every 50 milliseconds.Microcontroller based control systemand incorporates intelligent safety features,predicts and prevents unstable situations in order to on board diagnostics for easier fault finding.



Get more articles about side lifters, please click "TITAN side lifter".
