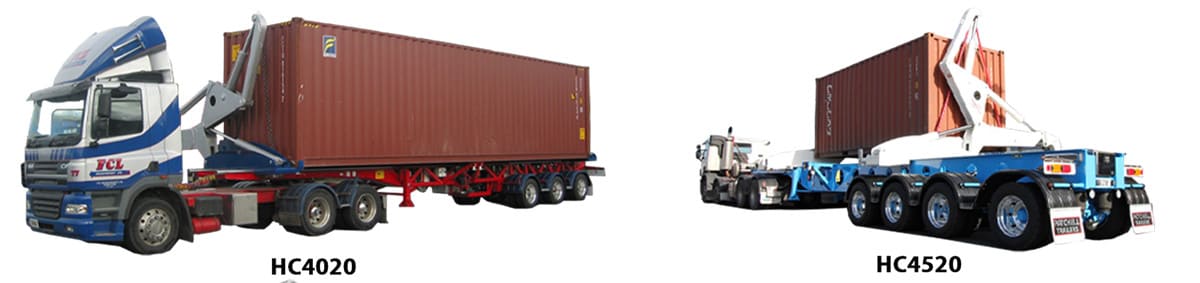

HC4020
The HC4020-35 Tonne is the original Swing lift trailer for sale for lifting 20’ and 40’ containers. Also available is the HC4020-40 Tonne model for lifting up to 40 Tonnes. The Swinglift sideloader is a fixed length with the Lift modules sliding in or out to suit container length. Wireless Radio Control is standard.
Chassis Options: Lattice or I Beam
Lifting Capacity: Up to 35 Tonne or 40 Tonne
Containers: 1 x 40’ 1 x 20’ 2 x 20’ 2 x 10’ 1 x 25’
HC4520
The HC4520 model has been developed for 45’ containers and is similar to the HC4020. As with all our trailer-mounted Swing lift trailer for sale, it is easy to lift another container or unload a trailer even when loaded with a container. Wireless Radio Control is standard.
Chassis Options: Lattice or I Beam
Lifting Capacity: Up to 35 or 40 Tonne
Containers: 1 x 45’ 1 x 40’ 1 x 20’ 2 x 20’ 2 x 10’ 1 x 25’
The HC4020-DC model differs from the original HC4020 in that the stabilizers and lifting crane are side-by-side, rather than side-by-side. This provides options for a variety of stabilizer configurations. The CANbus control system allows the operator to collect a wealth of data, including diagnostics and fault reporting. When a load cell is installed, the container weight is displayed on the display console as well as on the optional handheld remote control.
The operator can also view machine status and diagnostics, while data of interest to the owner, such as how and when the machine was operated, can be downloaded via a USB connection. A fully proportional pressure-compensated control valve provides unlimited travel speed variation. The Swing lift trailer for sale is fixed in length, and the lifting module slides in or out to accommodate container length. Wireless joystick or handheld radio control is standard.

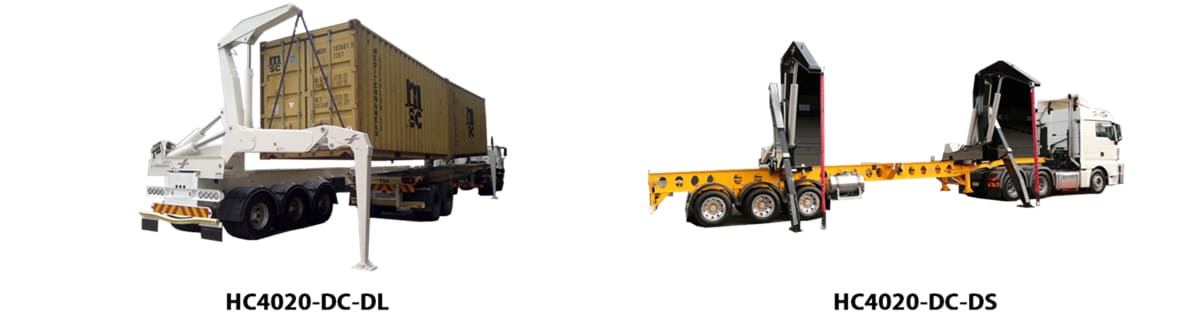

HC4020-DC-DL
The Swinglift sideloader is equipped with Dagger outrigger stabilizers. The Dagger outriggers allow containers to be placed close to each other.
HC4020-DC-LO
The Swing lift trailer for sale is designed for transport operators who need excellent stability, with its unique “Leg-Over®” design stabilizer legs with wide reach and the flexibility of the double cradle layout.
Chassis options: I-beam
Lifting capacity: up to 35 tons or 40 tons
Containers: 1 x 40’ 1 x 20’ 2 x 20’ 2 x 10’ 1 x 25’
HC4020-DC-DS (HIGHLIFT Double Stacking)
The Swing lift trailer for sale is designed for transport companies who need double stacking of heavy containers up to 35 tons.
Chassis options: I-beam
Lifting capacity: up to 35 tons or 40 tons
Containers: 1 x 40’ 1 x 20’ 2 x 20’ 2 x 10’ 1 x 25’
Not all container transport is heavy or fully loaded containers. We offer a range of container handling products to meet the needs of transport operators who do not want to use a fully loaded swing lift trailer for sale to transport these light loads. Increased efficiency at a lower cost.

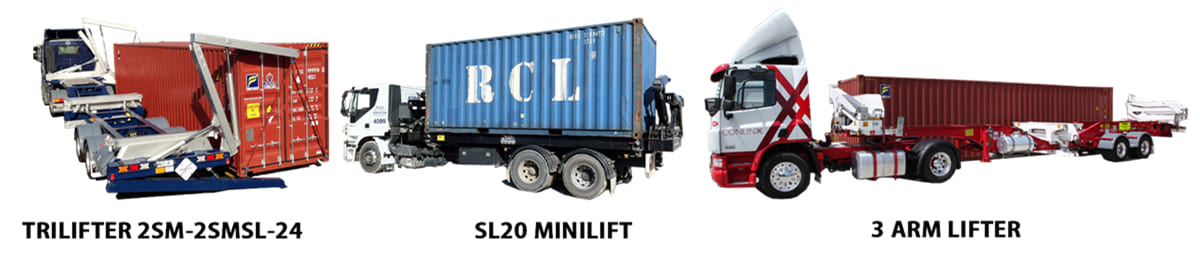

TRILIFTER 2SM-2SMSL-24
The 2SM-2SMSL-24 is a versatile 3-arm swinglift sideloader with a 12 tonne lifting capacity and features that make it the right choice for businesses who want the flexibility of a sideloader for lifting and transporting 20ft or 40ft empty or lightly loaded containers that may be fully loaded with cargo such as household furniture or even cars. Radio control is standard or an optional joystick remote control.
Chassis Options: I-Beam
Lifting Capacity: Up to 12 Tons
Containers: 1 x 40’ 1 x 20’ 2 x 20’
SL20 MINILIFT
The SL20 can be truck mounted or available as a removable unit that easily attaches to any truck chassis or trailer, the Swing lift trailer for sale mounting fits any standard 20’ ISO twist lock centre, allowing the Minilift to be used on a wide range of equipment.
SL20M Chassis: Truck Mounted
SL20DM Chassis: Removable
Lifting Capacity: 16 Tons
Containers: 1 x 20’
For transport operators who do not need the flexibility of a sliding lift module, there are cost savings to be had by choosing a swing lift trailer for sale that is designed for 20’ or 40’ containers.

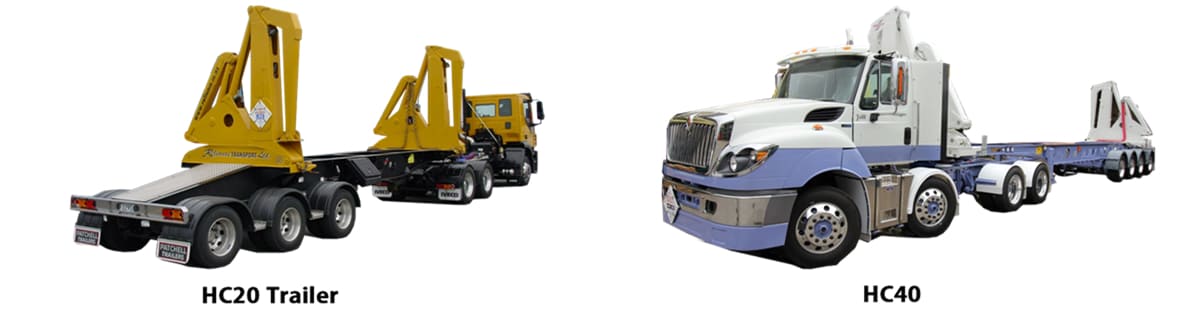

HC20 trailer
Fixed trailer length. Fixed lift module only for 20’ position.
HC20 truck
Carrying medium weight containers on truck (depending on truck chassis GVM). Fixed lift module only for 20’ position.
Trailer chassis: I-beam
Lifting capacity: 35 tons
Containers: 1 x 20’
HC40
Fixed trailer length. Fixed lift module only for 40’ position. Optimized for maximum payload.
Chassis options: Lattice or I-beam
Lifting capacity: 35 tons to 40 tons
Containers: 1 x 40 ft
Swinglift "A" double "B" double and Road Train sideloaders offer our customers the flexibility and efficiency to carry multiple containers per trip.

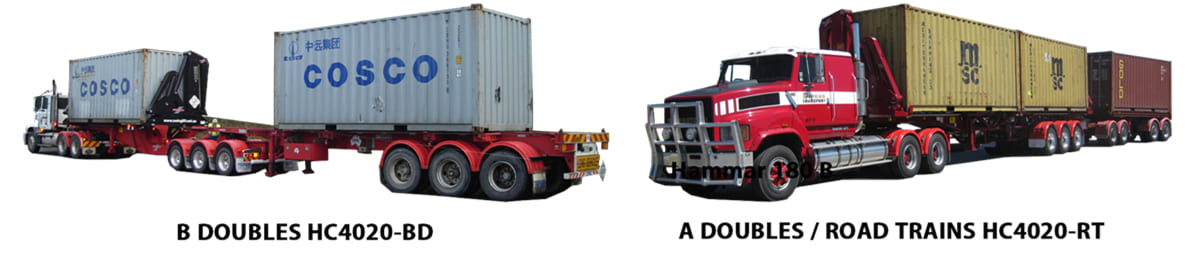

B Double HC4020-BD
The HC4020-BD allows you to carry a 20ft container on a Swinglift in a B double configuration while towing 2 x 20ft or 1 x 40ft container. The HC4020-BD is set up in a B double configuration with a fifth wheel at the rear of the Swing lift trailer for sale. Two positions to carry a 20ft container (center or front) or a 40ft container. Radio control is standard.
Chassis options: I-beam
Lifting capacity: Up to 35 tonnes or 40 tonnes
Containers: 1 x 40’ 1 x 20’
A DOUBLES / ROAD TRAINS HC4020-RT
The HC4020-RT features a Ringfeder traction coupling for road train configuration. Radio control is standard.
Chassis options: I-beam or Lattice
Lifting capacity: Up to 35 tonnes or 40 tonnes
Containers: 1 x 40’ 1 x 20’ 2 x 20’ 2 x 10’ 1 x 25’
Swinglift® recognises that ‘one size fits all’ does not fit all and will work with our customers to provide tailored solutions. When you need extra wide reach and double stacking capability, this is the Swing lift trailer for sale, with reach that will exceed any other model.
Chassis Options: I-Beam
Lift Capacity: Up to 35 Tons
Containers: 1x 40’ 1 x 20’ 2 x 20’
