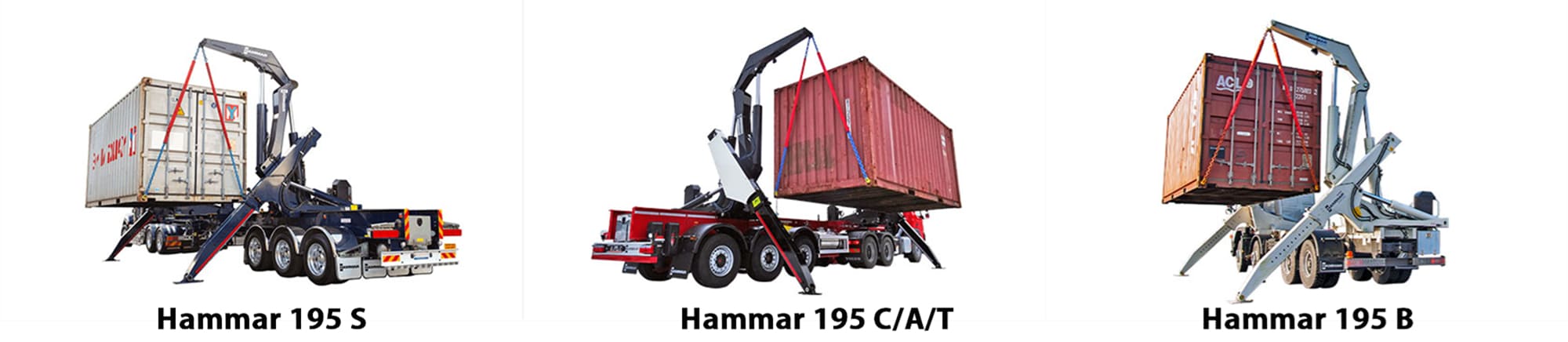

Hammar 195 Series
When buying a Hammar side loader for sale you always get a high quality Hammar designed chassis, optimized and made for Sideloader operations. We have several models to fulfil our customers’ requirements, which are then adapted to suit local regulations and the customer’s needs.
The Hammar 195s side loader trailer allows for the lifting of containers from the ground/ground with maximum safety and ease. A complete handling cycle takes only 3-4 minutes. The flexible positioning of the support legs provides more options for handling containers where space is limited.
The support legs of the Hammar side loader for sale are retractable and tiltable. When placed on the ground, they can be extended up to 2 meters and can be tilted to stand vertically (with reduced lifting capacity). This allows for several different support positions, making the Hammar side loader price able to cope with almost any situation with ease.

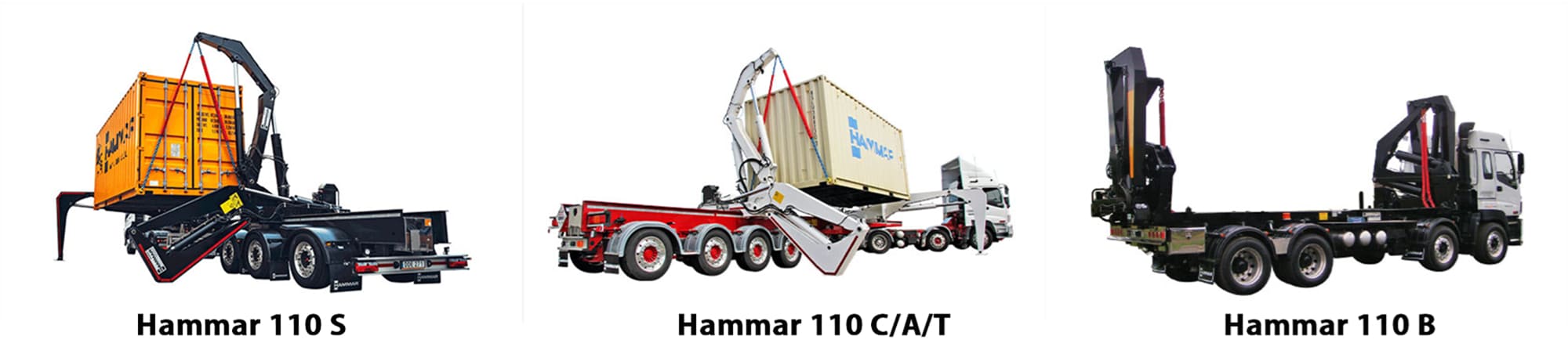

Hammar 110 Series
The Hammar 110 is the result of the latest technology and innovation. The Hammar side loader for sale has two main features: unique, versatile double-action support legs and low tare weight. Hammar side loader price also offers more advanced lifting options such as top spreaders, retractable cranes and high cube stacking.
The support legs of the Hammar side loader trailer have two different modes. In step-over mode, the support legs unfold in a "step-over motion" and extend outwards 3.2 meters. In sledgehammer mode, the support legs remain folded and extend out 2.0 meters. In step-over mode, the support legs extend onto the matching chassis, allowing quick, safe and easy transfer to and from the chassis, and providing high stability and ultra-low ground pressure. The sledgehammer mode of the Hammar sideloader for sale is faster and requires less external space when operating.
With a tare weight of 8.4 tonnes, the Hammar 110 is approximately 1-3 tonnes lighter than similar models. The Hammar 110 is the best choice when you are performing multiple transfer operations and want maximum payload and/or extra versatility.

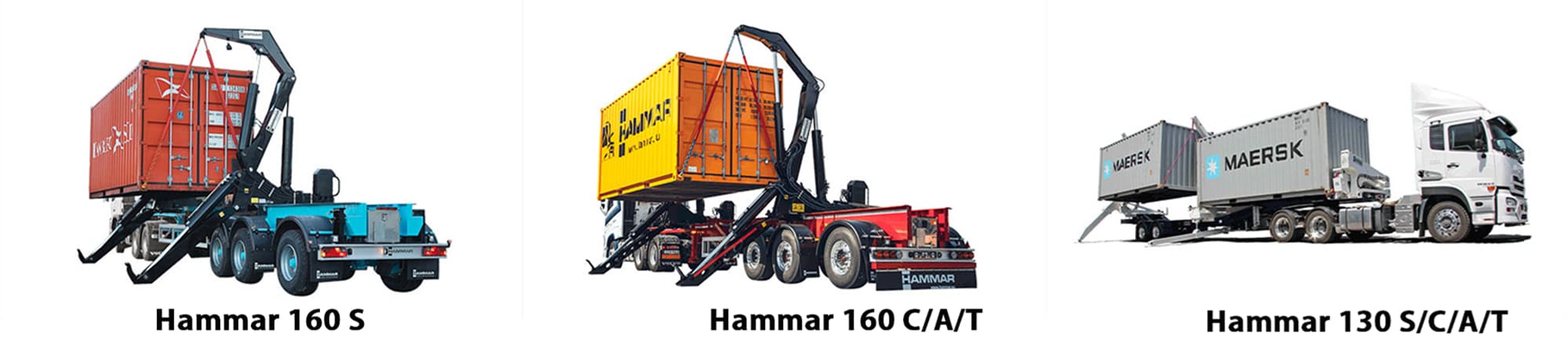

Hammar 160 Series
The Hammar 160 is a proven Hammar side loader for sale designed with simplicity and reliability in mind. With a lifting capacity of 36 tons, the Hammar side loader price can easily handle fully loaded containers.
The Hammar side loader price has the lowest tare weight of all side loader cranes on the market, with a lifting capacity of over 30 tons, from 7.1 tons to 20 feet to 40 feet capacity and 3 axles.
The supporting legs of the Hammar side loader trailer move in a fixed arc and can be placed in two positions: on the ground or on top of a matching chassis or railway wagon. The Hammar 160 is the best choice when you want to maximize payload. The Hammar side loader for sale is ideal for lifting/hoisting from the ground and also performs well when transferred to and from certain matching chassis.

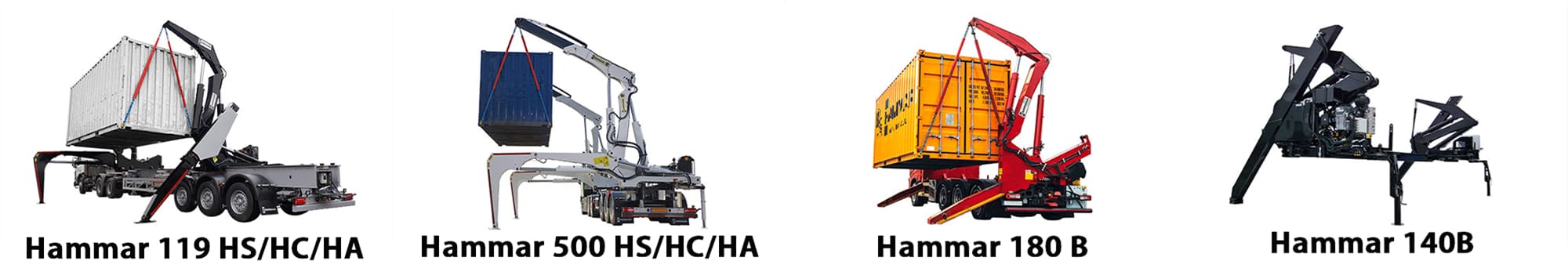

Hammar Other Series
The Hammar 500 is the pinnacle of Hammar side loader for sale performance, with unrivalled versatility and capability. As the top model in the Hammar side loader price range, the Hammar side loader trailer is designed for those who demand the highest capacity and most advanced features. With a lifting capacity of 36 or 45 tonnes (SWL) and an impressive reach of 6 metres, the Hammar 500 side loader trailer stands out where other models fall short.
The Hammar side loader for sale's supporting legs feature three different operating modes, each excelling at a different task. The Hammar side loader price is able to handle more complex situations, making it particularly useful in yard or terminal operations. The Hammar side loader trailer is the ideal choice for those who need a side loader model that can do it all. Whether it's heavy lifting or more advanced container placement, the Hammar 500 side loader offers excellent performance across the board.
The Hammar 119 is an extremely adaptable Hammar side loader for sale that combines the advantages of two different support leg types into a single versatile solution. This model offers the best transfer and stacking capabilities. With a lifting capacity of 36 or 45 tons (SWL), it can easily handle any fully loaded container.
The front support legs of the Hammar side loader price feature a Step Over pattern, which allows for easy, quick and smooth transfer of containers from another chassis, while providing high stability for floor-to-floor lifting. Meanwhile, the rear tilting telescopic support legs of the Hammar side loader trailer provide additional flexibility in its positioning. Together with its stacking function, the Hammar 119 side loader offers a powerful combination of versatility and efficient transfer performance.
The Hammar 180 is a side lift designed for permanent mounting on a truck chassis. The Hammar sideloader for sale was designed with low deadweight and usability in mind. It has the lowest deadweight of all truck-mounted side lifts. Choose between 12, 15, 20, 25 or 30 ton lifting capacities (models 181, 182, 183, 184 or 185) and a host of lifting options. The legs of the Hammar side loader for sale extend in a single diagonal direction to rest on the ground during operation. The legs are mounted low relative to the truck bed, which means they have a low working height. This can be used to place the legs under some companion chassis or rail wagons when transferring. The Hammar 180 is the best choice when you need a truck mounted unit, maximum payload and/or one of the many lifting options.
The Hammar 140 is a unique clip-on unit that allows you to mount the frame to any truck or trailer with a standard 20-foot twist-lock position and room for a crane. This means you can use it on many different vehicles and you can easily change the lifting side by turning it. The unit can be easily installed or removed by lifting it up using the built-in legs or using a forklift.
The Hammar 140 sideloader is an excellent choice for empty or lightly loaded 20ft containers. The crane is fixed and the support legs are retractable. The Hammar side loader price has a maximum crane reach of 4.0m (from the centre of the chassis), which means it can easily transfer lighter loads and empty containers to almost any chassis or railway wagon. The Hammar 140 sideloader is the best choice if you want all the advantages of a clamp-on unit and want to handle a single size of empty containers or at most medium loads of containers.

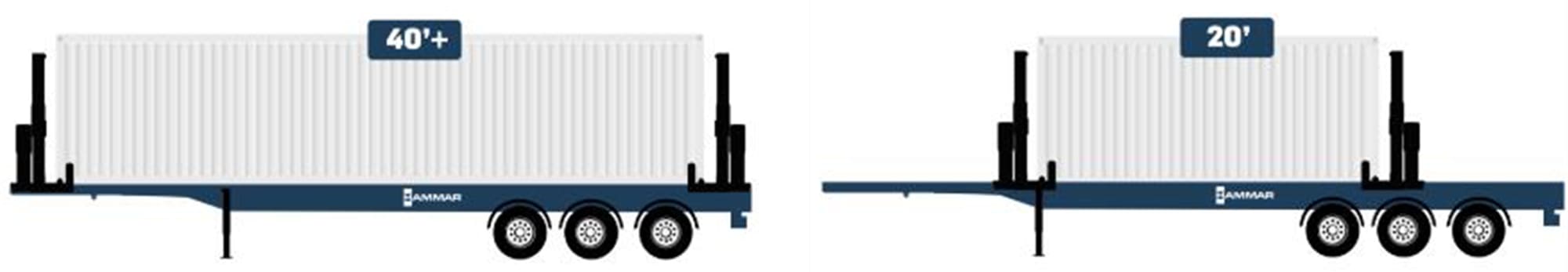

Fixed Chassis, Sliding Cranes - 195 S/110 S/160 S/500 HS/119 HS
The Hammar side loader price S-chassis is a fixed length, and has sliding cranes meaning it can handle multiple container sizes. Hammar side loader trailer has a straight forward design and the lowest tare weight of all Hammar chassis. Hammar 195s is the most common model used world-wide. Also available with fixed cranes for single size containers upon request.

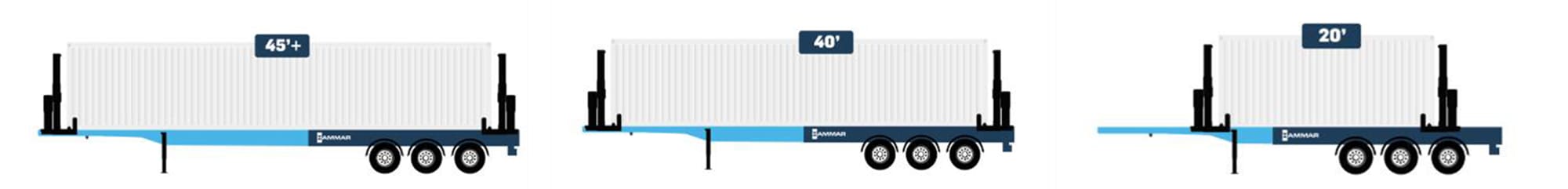

Telescopic chassis, Combination - 195 C/110 C/160 C/500 HC/119 HC
The most common telescopic chassis is the C-chassis (Combination). It combines sliding cranes with a telescopic chassis and has a low tare weight. The sliding cranes enable optimized weight distribution of your load. A telescopic chassis is a requirement in some countries for transporting 45' or longer containers on the road.
Telescopic chassis, Advanced - 195 A/110 A/160 A/500 HA/119 HA
The A-chassis (Advanced) is a unique chassis from Hammar sideloader for saleand, as the name suggests, the most advanced. It is made of three moving chassis parts and has sliding cranes. This makes it possible to optimise the weight distribution for both 2 and 3-axle trucks, as well as for different container sizes. It is also possible to make it shorter than a C-chassis in its shortest position (20’).

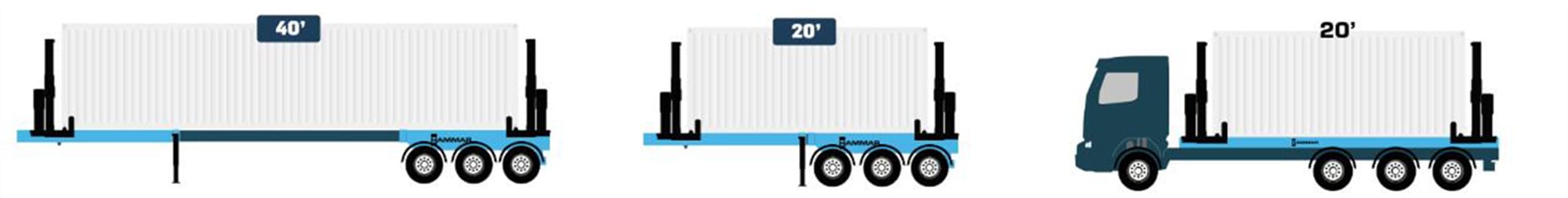

Telescopic chassis, Trombone - 195 T/110 T/160 T
The Hammar side loader for sale T-chassis (Trombone) is the simplest telescopic chassis. The chassis extends and retracts between 20’-40’ modes and has fixed cranes. The Hammar side loader price T-chassis can be built to the shortest length, providing a high level of maneuverability when transporting 20’ containers.
Truck mounted, 195 B/110 B/160 B
The Hammar 195 can be mounted directly on a truck chassis. This provides the Sideloader with unbeatable

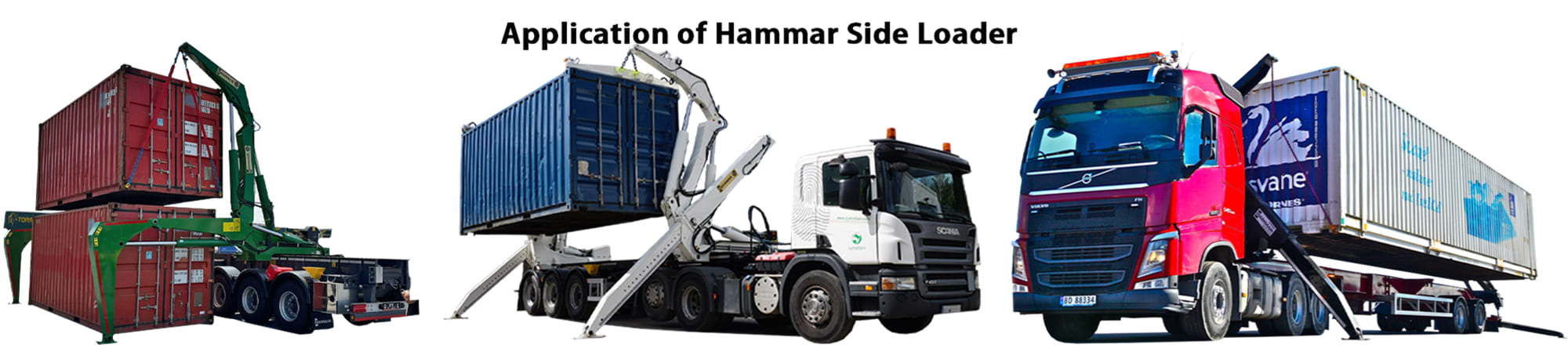

The Hammar side loader for sale is designed for lifting and transporting containers. It is widely used in the logistics, shipping and construction industries due to its versatility, efficiency and ability to operate in tight spaces.
1. Container loading and unloading
From ground to truck or trailer: The Hammar side loader price can lift containers directly from the ground and place them on a truck or trailer without the need for a crane or additional handling equipment.
Between vehicles: The Hammar side loader trailer can transfer containers from one vehicle to another, ensuring smooth logistics operations.
Flexible deployment: The Hammar sideloader for sale is able to load and unload in remote areas or places without container handling infrastructure.
2. Intermodal transport
Port operations: The Hammar 195s is often used in ports to handle containers quickly and efficiently without relying on port cranes or fixed infrastructure.
Rail and road transshipment: The Hammar 110 simplifies container movement between rail yards and road transport vehicles.
3. On-site storage and placement
Temporary storage: The Hammar side loader for sale is used to place containers on the ground for on-site storage at warehouses, construction sites or events.
Precise positioning: The Hammar side loader price allows containers to be accurately placed in tight spaces, ensuring optimal use of the available area.
Operator Training
Hammar side loader for sale has a team of highly skilled technicians who have received extensive training and have the experience to provide global support. Hammar's goal is to provide a technical support service that guarantees fast response times and the highest quality.
Annual Inspections
Hammar side loader price has a technical life of 30 years or more. To increase safety and reliability and minimize downtime, customers' Hammar side loader trailers are inspected annually to ensure that the customer has a product that is always capable of working.
Maintenance, Service and Repairs
Hammar offers everything from simple service and maintenance to advanced repairs. When you put your Hammar sideloader for sale in our hands, you get a warranty on parts and work.
Technical Support
Hammar has a team of highly skilled technicians who have received extensive training and have the experience to provide global support. Hammar aim to provide a technical support service that guarantees fast response times and the highest quality.
