Container side loaders (also called "side lifts" or "auto-loading trailers") provide a versatile and cost-effective way to load, transport, and unload containers and other cargo. In a market where container loading and unloading volumes continue to increase, this makes it possible for you to gain new business, customers and income.
The container side loader can safely handle shipping containers and other cargo
From/to other trailers, trailers or trains, or directly on the ground where they can be packed or unpacked safely and effectively.
The container side loader is installed on a trailer or trailer and can be operated with a minimum of manpower without any other equipment, which can minimize waiting time, planning time, and can provide seamless and competitive services.
37Ton Container Side Loader Video Display

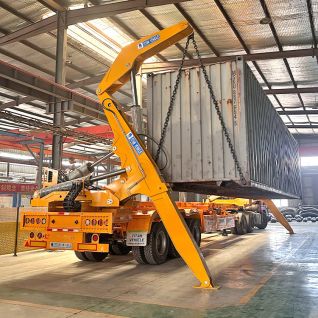

The container side loader consists of two side hoisting cranes and a trailer or trailer. The container side loader has four basic operations: from/lift to the ground, from/to another chassis or railway wagon, stacking containers and road transportation. The complete processing time is 2-4 minutes.
Lift from/to the ground
TITAN container side loader can load and unload containers or other goods directly from/to the ground. Once the cargo falls on the ground, container side loader can proceed to the next job and can pack/unpack the container safely and effectively.
From/to another trailer or railway wagon
TITAN container side loaders can remove containers from trailers, trailers or rail wagons. This means it can be used as a mobile lifting device or as part of a fleet to load/unload other trailers or trailers. This also means that container side loader can be used as an intermodal tool.
Container Side Loader For sale
Road transport
The container side loader can safely lift the container and transport it by road in accordance with all regulations. No other equipment can be transported and upgraded with the same cost-effectiveness and performance as the TITAN container side loader.
Stacking container
Container side loader can be equipped with a stacking function, allowing you to place one container on top of another container placed on the ground. Through double stacking, customers can save valuable space. Stacked containers can also improve cargo safety.
The driver places the trailer next to the container. The power supply of the container side loader is provided by PTO or power take-off.
The crane extends and places outriggers on either side of the container to prevent the trailer from tipping over. After the outriggers are fully extended, the driver can connect the chain.
The container side loader is useful when the passage between the container stacks is too narrow or there is not much space in front or behind the containers.
37 Ton Container Side Loader
Using a container side loader, drivers can load or unload containers in less than five minutes, which means they don't have to wait for cranes, forklifts or straddle carriers. This also means that only one person is involved in the lift, which improves the safety factor.
Some models can also load one container onto another adjacent trailer or railcar, or stack one container on top of another container on the ground.
Depending on the model, the container side loader can also lift other types of loads that can be properly suspended using chains, such as precast concrete, swapping car bodies, trailers, storage tanks, pipes, cable drums and heavy machinery. Certain applications may require other accessories, such as hangers.
Since the weight of the cargo is borne by the wheels of the trailer, container side loaders have multiple uses in situations where other machinery may be difficult to handle.
This leg is fully extended. You can see the danger zone of the lifting zone on the leg
The chain is connected to the bottom corner of the container by a fixing device. After the start of the lift, the driver must stay away from the lift zone, which is very important.
Side Loader Container
When the length and weight of the container are different, the crane can slide along the trailer chassis to move to the best position for hoisting, thereby placing the container in the best position to achieve the best weight distribution.
The two short containers can be lifted end-to-end with correct accessories.
Competitive advantages
Container side loaders allow you to perform work in a safe and effective manner and provide new forms of service that trailers and trailers cannot provide. You can load/unload from anywhere or from other trailers/trailers/vans anytime, anywhere without disturbing customers or using third-party equipment.
Fast turnaround
Container side loader allows you to quickly load and unload containers anytime, anywhere. With a complete operation time of 2-4 minutes, the driver can continue to the next task. Minimizing waiting time means higher efficiency and the possibility of increasing container flow.
Place the container on the ground
Container side loader can put the container on the ground so that the end user can pack it at will. If there is no loading and unloading platform, container side loader will also make it possible to unpack/pack containers safely and efficiently. The transport container placed on the ground can also be used as a flexible temporary storage room.
Safe cargo, safe workplace
The container side loader can provide a safe, horizontal 2+2 point lift, thus ensuring cargo safety and allowing you to handle dangerous, fragile or high-value cargo. Since the lifting operation and transportation are done by one person, the delivery process is as safe as possible.
Not only the container
The container side loader can lift many types of heavy objects and provides an economical choice for many specialized lifting cranes and systems. The high lifting capacity of the container side loader can be matched with cranes of 100-120 tons. The lower ground pressure makes the container side loader more suitable for unprepared terrain, while the lower operating altitude makes it less susceptible to bad weather.
There is always demand
Suppliers using container side loader are becoming more and more popular among customers. In an economic downturn, the container side loader is usually the last stop machine.
Processing operation example
To date, ISO shipping boxes are the most common unit handled with container side loader. However, container side loaders has a large number of other applications. Here you can find some examples!
Precast concrete
Use container side loader to transport prefabricated building components to the construction project site, such as walls, floors, etc.
Exchange
When it is "too large", it can be handled with basic lifting equipment or top spreaders.
trailer recycling
TITAN container side loader can be used to safely and effectively pick up debris or crashed heavy trailers.
Cable drum
A trailer for lifting and transporting large and heavy cable reels, it is also faster and less sensitive to ground pressure restrictions and weather effects than alternative solutions.
Rig and crane
Lift, transfer or transport heavy drilling rigs or cranes.
Tube
Use TITAN elevators to transport pipelines for various purposes.
Stacking container
Equip your TITAN with stacking capabilities. With the TITAN MegaReach retractable crane, you can even stack two containers in the second row.
Temporary housing
Lift and transport temporary office buildings, for example for construction projects.
37Ton Container Side Loader Manufacturer for sale
1) Only trained personnel can operate the machine. The operator must abide by the operating rules and keep irrelevant personnel away from the forbidden area. Please remember to stand on the same side as the lifted goods to ensure the best loading visibility. And adopts natural and normal operation mode.
When lifting a load or when the crane is running, the operator must not leave the operating position.
2) In order to ensure safety, before operation, check whether the forklift works normally and meets the requirements for lifting goods. Ensure that the container side loader is not overloaded.
Please refer to the working range of the side lift arm to ensure that the front and rear unbalanced load does not exceed 10% of the load in the corresponding working range, and keep the container and the chassis at an appropriate distance between 300mm and 500mm.
3) Do not operate side-lifting jacks on soft ground that may sink, landslide, or collapse, or near ditches.
If you absolutely need to work on soft or yielding ground, you must increase the load-bearing area by placing a stabilizer support plate between the bottom of the stabilizing leg and the ground to fully distribute the load.
40Ft Container Side Loader Trailer for Sale
Competitive Advantage
Sideloader can put the container on the ground so that the end user can wander around and pack at will. If there is no loading and unloading platform, container side loader will also make it possible to unpack/pack containers safely and efficiently. The transport container placed on the ground can also be used as a flexible temporary storage room.
Fast turnaround
The container side loader can provide a safe, horizontal 2+2 point lift, thus ensuring cargo safety and allowing you to handle dangerous, fragile or high-value cargo. Since the lifting operation and transportation are done by one person, the delivery process is as safe as possible.
Safe cargo, safe workplace
Sideloader allows you to quickly load and unload containers anytime, anywhere. With a complete operation time of 2-4 minutes, the driver can continue to the next task. Minimizing waiting time means higher efficiency and the possibility of increasing container flow.
Place the container on the ground
Side loaders allow you to perform work in a safe and effective manner and provide new forms of service that trailers and trailers cannot provide. You can load/unload from anywhere or from other trailers/trailers/vans anytime, anywhere without disturbing customers or using third-party equipment.
1)Double stacking of containers. Lack of space is a recurrent feature of today’s logistics world. Double stacking of containers can be a very useful and economic solution. TITAN container side loader can double stack two high cube containers on the ground without chain shorteners. It avoids to invest in a specific equipment. Do not hesitate to contact our teams so we can discuss together the perfect product to match your needs.
2)Transfer from/to other container side loader. When several containers must be delivered in the same yard, container side loader can pick up the containers on the companion trailers to ground them. Waiting time for trailers and trailers is drastically reduced, thus improving the efficiency and profitability of each trip.
3)Grounding and lifting of containers. Grounding and lifting represent 90% of a sidelifter’s tasks. Once on the ground, the container side loader goes to another job, while the container can be stuffed or unstuffed more easily, without the need of specific infrastructure such as platforms or loading ramps. Forklifts can therefore enter the container. container side loader range of equipments allows to handle containers even on rough ground. Do not hesitate to contact our teams so we can discuss together the perfect product to match your needs.
Side Loader Container for Sale
In order to respond to environmental protection, please pay attention to the following matters.
1. For our environment, please properly dispose of the waste in the products during operation and maintenance.
When operating, maintaining or repairing the product, please ensure that the waste is separated and disposed of safely.
2. The barrels for collecting solid waste (waste paper, scrap metal) are specially manufactured according to specific requirements, and the waste is recycled through recycling bins.
1) Store used batteries in designated areas and dispose of them. Marked with "Hazardous Waste", which should be recycled by qualified units afterward
2) Collect special waste oil in special barrels, and mark "dangerous waste" on the collection barrels to avoid leakage as much as possible.
